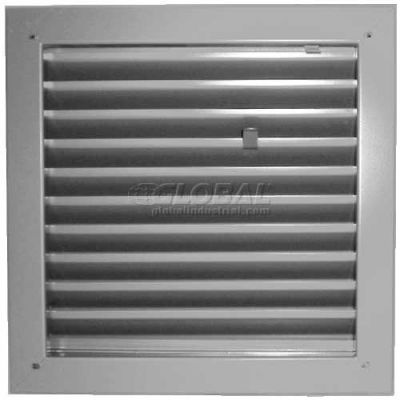

Fire-Rated Door Louver 1900A2424G, Adjustable Z-Blade, Self-Attach, 24" X 24", Gray Primer

Item #: WBB998003

Sold By: globalindustrial.com

Usually ships in 2 to 5 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

List Price: $260.00 Save: up to 37%
Price: $164.95
Product Information
Product Q&A
Fire-Rated Door Louver 1900A2424G, Adjustable Z-Blade, Self-Attach, 24" X 24", Gray Primer

Adjustable Z-Blade Louver with Fusible Link activated at 165 Degrees F is Ideal for Use in Fire Doors up to 1-1/2 Hour Rating. The Self-Attaching Frame Style is Ideal for Installation in Existing Door Cutouts.

Material: 16 gauge CRS frame and louver blades. Min size 10" x 6", Max 24" x 24".

Construction: Louver: Z-blade louver is riveted to the operating bar and frame at 1" intervals to welded 1-9/16" deep frame. Mechanical Stop holds blades open. Frame: Mitered and welded corners: screws fastened through prepared frame into louver core leaving corridor side of frame free of fasteners.

Operation: Adjustable blades of 16 gauge CRS pivot on cadmium-plated steel rivets. The blades are operated by a manual adjusting lever. A spring loaded fusible link mechanism is incorporated into the design; upon melting of the link, the action bar is actuated, thereby closing and locking all of the blades.

Product Specifications

  • FIRE RATING/APPROVALWHI Fire Door Testing Up to 2-1/2 Hours
  • BLADE TYPEAdjustable Z-Blade
  • APPLICATIONInterior
  • MIN SIZE INCHES10 X 6
  • MAX SIZE INCHES24 X 24
  • ROUGH OPENING24" X 24"
  • BRANDAir Louvers, Inc.
  • MANUFACTURERS PART NUMBER 1900A 2424G
  • DESCRIPTIONFire-Rated Door Louver
  • SERIES1900A
  • COLOR FINISHGray Primered
  • FITS DOOR THICKNESS INCHESFor 1-3/4" Door
  • MATERIAL16 Gauge CRS Frame & Louver Blades
  • FASTENERS#8 X 3/4" Phillips Flathead
