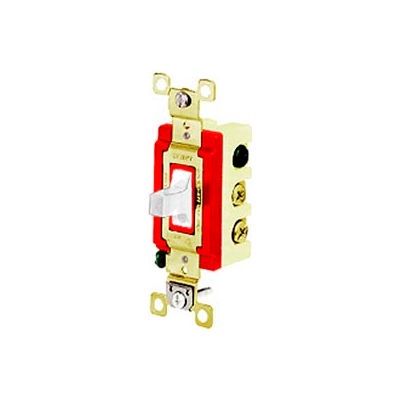

Bryant 4922W Toggle Switch, Single Pole, Double Throw, 20A, 120/277V AC, White
Bryant 4922W Toggle Switch, Single Pole, Double Throw, 20A, 120/277V AC, White
Sold by: globalindustrial.com
Availability:  Usually ships in 4 to 7 days
Stock No: WBB211277
Price: $33.95

Chat with a Salesperson Add this item to your list
Email This Page Printer Friendly Version
Qty:   ADD TO CART
Frequently Purchased Together
Bryant 4922W Toggle Switch, Single Pole, Double Throw, 20A, 120/277V AC, White Bryant SS1 Toggle Plate, 1-Gang, Standard, Satin Stainless

select


Bryant 4922W Toggle Switch, Single Pole, Double Throw, 20A, 120/277V AC, White

Bryant SS1 Toggle Plate, 1-Gang, Standard, Satin Stainless


Total for 2 items is $48.65

Product Information
Product Q&A
 Write a review for this product. Write A Review
Special Purpose AC, Industrial Switches

Construction:
  • Base Material: Thermoset
  • Face Material: Thermoset, Color coded by voltage
  • Toggle/Actuator Material: Nylon
  • Terminals: High Performance Copper Alloy
  • Mounting Yoke: Brass and Nickel Plated Steel
  • Contacts: Silver Cadmium Oxide
  • Movable Contact Arm: High Performance Copper Alloy
  • Rocker: Thermoplastic Elastomer
  • Ground Terminal: Brass and Nickel Plated Steel
  • Terminal Screws: Brass
  • Ground Screw: Brass (green)
  • Auto Ground Clip: Stainless Steel
Technical Specs:
  • Dielectric Voltage: Withstands 1500V Minimum
  • Overload: Minimum 48 times rated current for 100 cycles
  • Temp. Rise: 30 deg C maximum at rated current
  • Max Continuous Current: 20A
  • Flammibility: UL 94 V2
  • Operating Temperature: Maximum continuous 75 deg C- Minimum -40 dec C (w/o impact)
Certifications:
  • Standards: Complies with UL 20 and NEMA WD-1
  • UL Certification: UL Listed, File E1464, Guide #WMUZ
Product Specifications
AMPS 20A
BRAND Bryant
COLOR FINISH White
MANUFACTURERS PART NUMBER 4922W
VOLTAGE 120 / 277V AC
WIRING SYLE Back & Side Wired
CONTACT TYPE Single Pole, Double Throw
TERMINAL GAUGE MAX #10 AWG
TERMINAL GAUGE MIN #14 AWG
MADE IN THE U.S.A. Yes
ACTUATOR Standard
