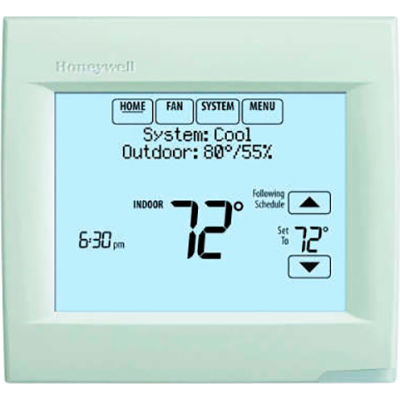

VisionPRO® 8000 Thermostat With Redlink™ 3H/2C Heat Pump or 2H/2C Conventional, White

Item #: WBB921338

Sold By: globalindustrial.com

Usually ships in 20 to 23 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

Price: $186.95

with FREE shipping today! (within the contiguous US)

Add to list
Product Information
Product Q&A
VisionPRO® 8000 Thermostat With Redlink™ 3H/2C Heat Pump or 2H/2C Conventional, White

VisionPRO® 8000 with RedLINK™ technology is a touchscreen thermostat, 7 day programmable and selectable for residential or light commercial use. Controls up to 3-stages of heat and 2-stages of cool in a heat pump system and up to 2-stages of heat and 2-stages of cool in a conventional system.

Features:

  • Thermostat works standalone or with the THM5421R1021 Equipment Interface Module or with the TrueZONE Wireless Adapter.
  • Smart Schedule - programs in seconds for any lifestyle.
  • Patented interview based programming and installer setup.
  • RedLINK™ wireless communication.
  • Increase profit per job by including RedLINK™ accessories that provide comfort and convenience. RedLINK™ accessories include the RedLINK™ Internet Gateway, Portable Comfort Control (PCC), Wireless Outdoor Sensor, Wireless Indoor Sensor, Wireless Entry/Exit Remote, Wireless Vent and Filter Boost Remote, TrueSTEAM™ humidifier with Wireless Adapter and TrueZONE® zoning panel with Wireless Adapter.
  • Selectable for residential and light commercial applications. Meets commercial code and is title 24 compliant.
  • Light commercial - commercial language (occupied and unoccupied), schedule holidays and custom events, remote setback, economizer and time of day. Remote Setback requires the THM5421R1021 Equipment Interface Module.
  • Plain language setup, no manual needed.
  • Alerts and User Interactions Log - Keeps a searchable history of alerts and setting changes to the thermostat to determine if there is a system malfunction or if the issue was caused by a user error. Saves time in troubleshooting and points the technician in the right direction. The Alert and User Interaction Logs are viewable on a computer after you download them from the thermostat to a microSD card.
  • Customizable Service Reminders allow dealers to remind their customers when its time to call for service, when their warranty is expiring and to provide customized alerts.
  • MicroSD port for copying the Installer Setup, Customizable Reminders, Custom Events and Holidays to multiple thermostats.
  • MicroSD port for adding the dealer's contact information on the screen.
  • 1 assignable output on the TH8321 model to control humidification, dehumidification, ventilation or a stage of heating/cooling.
  • 3 assignable outputs on the Equipment Interface Module to control humidification, dehumidification, ventilation or a stage of heating/cooling. The TH8110 and TH8320 models require the use of a Wireless Indoor Sensor to control humidification and dehumidification.
  • 1 assignable input can be used with a wired outdoor, indoor or discharge sensor.
  • 4 assignable inputs on the Equipment Interface Module can be used with wired outdoor, indoor or discharge sensors, occupancy sensor for remote setback and dry contact devices to trip pre-packaged or custom alerts such as a full drain pan or water leak.
  • Extend wireless range of the Equipment Interface Module by connecting a THM4000R1000 Wireless Adapter to the ABCD terminals.
  • Dual powered - battery or hardwired (C wire).
  • Precise temperature control (+/- 1° F) for reliable and consistent temperature.
  • Multiple staging options to provide comfort or energy savings.

Documents are in PDF format

Product Specifications

  • BRANDHoneywell
  • LENGTH INCHES4-15/16
  • WIDTH INCHES1-1/8
  • HEIGHT INCHES4-5/8
  • COLORArctic White
  • OPERATING TEMPERATURE RANGE32 F To 120 F - 0 C To 48.9 C
  • SUPPLY VOLTAGE18 To 30 Vac Or 750 Mv
  • ELECTRICAL CONNECTIONSScrew Terminals
  • SETTINGS PER DAY4
  • STAGES1H/1C Heat Pump 1H/1C Conv. Standalone; 4H/2C Heat Pump, 3H/ 2C Conv. EIM
  • POWER TYPEBattery Or Hardwired
  • CHANGEOVER TYPEAuto Or Manual
  • USED WITHWorks standalone or with THM5421R1021 and RedLINK Accessories
  • APPLICATIONUp To 3H/2C Heat Pump Or Up To 2H/2C Conventional
  • DESCRIPTIONT-stat
  • THERMOSTATVisionPRO® 8000 thermostat
  • LIMITED WARRANTY YEARS5
  • MANUFACTURER'S PART NUMBERTH8320R1003
  • FREQUENCY50 Hz; 60 Hz
  • OPERATING HUMIDITY RANGE5 To 90% Rh, Non-Condensing
  • SWITCH POSITIONS (FAN)Auto-On-Circ-Follow Schedule
  • PROGRAMMABILITY7-Day Multiple Day Programming Or Non-Programmable
  • TERMINAL DESIGNATIONSR, Rc, C, W-O/B, W2-Aux/E, Y, Y2, G, A-L/A, K, S1 S1
  • DISPLAY SIZE10 Sq In.
  • SETTING TEMPERATURE RANGE (F)Heat: 40 F To 90 F; Cool 50 F To 99F
  • SETTING TEMPERATURE RANGE (C)Heat: 4.5 C To 32.0 C; Cool: 10 C To 37.0 C
  • ELECTRICAL RATINGS18 To 30 Vac Or 750 Mv
  • DIMENSIONS (MM)118 mm. High, 126 mm. Wide, 29 mm. Deep
  • HAZMAT INFORMATIONUn 3091 Lithium Metal Batteries Packed In/With Equipment
  • SWITCH POSITIONS (SYSTEM)Heat-Off-Cool-Auto-Em.Heat
