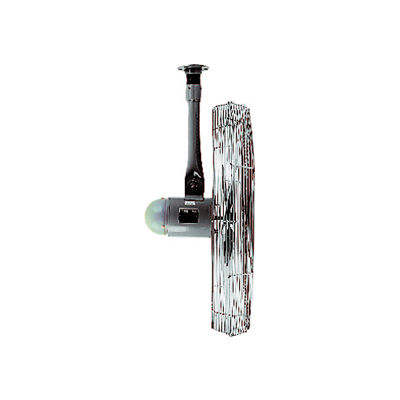

TPI 24" Ceilling Mount Fan Non Oscillating 1/3HP 7000CFM 1PH Totally Enclosed Motor

Rollover image to zoom in

Click image to enlarge

See all 15 items in product family

TPI 24" Ceilling Mount Fan Non Oscillating 1/3HP 7000CFM 1PH Totally Enclosed Motor

Item #: WB294539

Sold By: globalindustrial.com

Usually ships in 14 to 17 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

Price: $ 281.60
Product Information
Photo/Video Gallery
Warranty
Product Q&A
Accessories
AIR CIRCULATOR AND SPECIALTY FANS
Non-Oscillating TPI Ceiling Mount Fan
Ceiling Mount Fans require 1-1/2" or longer pipe nipple for assembly (not included). These quality fans include an enclosed permanently lubricated, PSC-type ball bearing single-phase motor for long life and optimum performance. 3 quiet aluminum blades are enclosed in double locking chrome plated steel wire guards for safety. Pivot-action fan head allows vertical tilt angle adjustments. 2-speed pull chain operation. 12'L SJT type, 3-conductor power cord. 120V. Easy assembly with pre-assembled fan heads and mounts. Meets OSHA standards, UL listed. Horsepower rating based upon maximum speed/load.

Product Specifications

    • BRANDTPI
    • FAN DIAMETER INCHES24
    • WEIGHT LBS45
    • SPEEDS2
    • VOLTAGE120
    • PHASE1
    • HORSEPOWER1/3
    • MOTOR TYPETotally Enclosed
    • MOUNT TYPECeiling
    • TYPEIndustrial-Assembled
    • APPLICATIONSpot & People Cooling
    • LIMITED WARRANTY YEARS3
    • ASSEMBLYUnassembled
    • MODEL294539
    • TUBE DIAMETER INCHES1-1/2
    • FAN TYPENon-Oscillating
    • APPROVALOSHA & UL Listed
    • BLADE TYPEAluminum
    • BLADE QUANTITY3
    • POWER CORD TYPESJT 3 Conductor
    • POWER CORD LENGTH FEET12
    • CFM HIGH RANGE1-10,000
    • VOLTS (LOW TO HIGH)120
    • CFM HIGH7,000
    • CFM LOW5,200
    • COLOR FINISHGray/Silver
    • CONSTRUCTIONSteel/Aluminum
