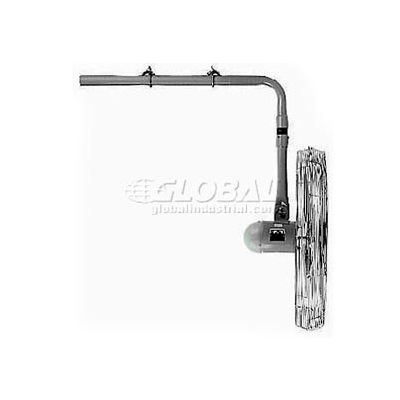

TPI 294532,24 Inch I-Beam Mount Fan Non-Oscillating 1/4 HP 3,800 CFM 1 PH TE Motor

Rollover image to zoom in

Click image to enlarge

See all 21 items in product family

TPI 294532,24 Inch I-Beam Mount Fan Non-Oscillating 1/4 HP 3,800 CFM 1 PH TE Motor

Item #: WB294532

Sold By: globalindustrial.com

Usually ships same day. Only 13 left, order soon Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

Price: $ 264.00
Product Information
Photo/Video Gallery
Warranty
Product Q&A
Accessories
AIR CIRCULATOR AND SPECIALTY FANS
Non-Oscillating TPI I-Beam Fans

I-Beam Fans require 1-1/2" or longer pipe nipple for assembly (not included). These quality fans include an enclosed permanently lubricated, PSC-type ball bearing single-phase motor for long life and optimum performance. 3 quiet aluminum blades are enclosed in double locking chrome plated steel wire guards for safety. Pivot-action fan head allows vertical tilt angle adjustments. 2-speed pull chain operation. 12'L SJT type, 3-conductor power cord. 120V. Easy assembly with pre-assembled fan heads and mounts. Meets OSHA standards, UL listed. Horsepower rating based upon maximum speed/load.

Product Specifications

    • BRANDTPI
    • FAN DIAMETER INCHES24
    • WEIGHT LBS50
    • VOLTAGE120
    • PHASE1
    • HORSEPOWER1/4
    • MOTOR TYPETotally Enclosed
    • MOUNT TYPEI-Beam
    • TYPEIndustrial-Assembled
    • APPLICATIONSpot & People Cooling
    • LIMITED WARRANTY YEARS1
    • SPEEDS2
    • FAN TYPENon-Oscillating
    • TUBE DIAMETER INCHES1-1/2
    • MODEL294532
    • ASSEMBLYUnassembled
    • CONSTRUCTIONSteel/Aluminum
    • COLOR FINISHGray/Silver
    • CFM LOW3,400
    • CFM HIGH3,800
    • BLADE QUANTITY3
    • POWER CORD TYPESJT 3 Conductor
    • POWER CORD LENGTH FEET12
    • CFM HIGH RANGE1-10,000
    • VOLTS (LOW TO HIGH)120
    • APPROVALOSHA & UL Listed
    • BLADE TYPEAluminum
