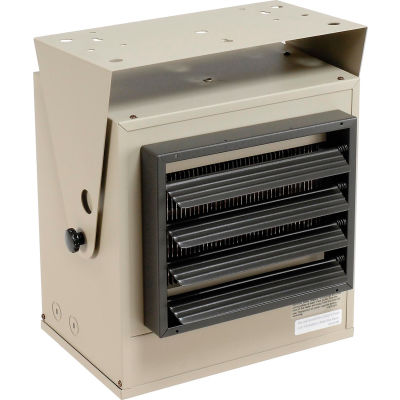

TPI Fan Forced Unit Heater P3P5605T - 5000W 480V 3 PH
See all 150 items in product family

TPI Fan Forced Unit Heater P3P5605T - 5000W 480V 3 PH

Item #: WBB45465

Sold By: globalindustrial.com

Usually ships in 3 to 6 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

Price: $ 485.65
Product Information
Warranty
Product Q&A
Accessories
MULTI-WATT FAN FORCED UNIT HEATERS
5000 Watt Heater – 480V
Fan forced unit heaters allow horizontal or vertical discharge using a pivot-action mount. These unit heaters are approved for residential applications. Fan heaters are made using a heavy gauge welded steel cabinet with powder coat finish. Fan forced heaters allow easy control access using a hinged and latched access door. Heavy-duty mounting bracket allow easy installation to walls or ceiling with a minimum mounting height of 6’. Mounting bracket allows pivot-action using hand screw knobs to lock the heater into place. Unit heaters feature a block finned steel element and automatic resetting over-heat limit control for safety and efficiency. Unit heaters include individually adjustable louvers to direct heat. Totally enclosed 3 phase, permanently lubricated motor is thermally protected for long life. Motor features rubber insulators to minimize vibration and noise. Fan forced unit heaters include hydraulic action thermostat with adjustable temperature range of 50-90 degrees. Thermostat allows remote and wall thermostat installation (not included). 24V Control standard on 3 phase units. Heaters measure 14”"W x 11-3/4"”D x 14"”H. cETLus listed.

Product Specifications

    • BRANDTPI
    • WIDTH INCHES14
    • DEPTH INCHES11-3/4
    • HEIGHT INCHES14
    • MINIMUM CLEARANCE TO COMBUSTIBLES INCHES6
    • WEIGHT LBS32
    • COLOR2 Tone Brown & Beige Powder Coat
    • ASSEMBLYAssembled
    • CONSTRUCTIONSteel
    • BTU HIGH17100
    • CFM HIGH275
    • HIGH SPEED RISE °F57
    • VOLTAGE480
    • PHASE3
    • WATTS HIGH5000
    • KILOWATTS5
    • APPROVALcETLus
    • LIMITED WARRANTY YEARS1
    • MANUFACTURER'S PART NUMBERP3P5605T
    • CONNECTION TYPEWiring to Terminal Block in Accordance with NEC & Local Codes
    • AMPS HIGH6
