SunStar Natural Gas Heater Infrared Ceramic, SGM3-N1, 26000 Btu

Rollover image to zoom in

Click image to enlarge

See all 20 items in product family

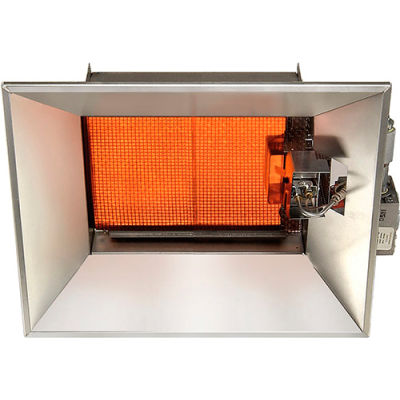

SunStar Natural Gas Heater Infrared Ceramic, SGM3-N1, 26000 Btu

Item #: WB245605N

Sold By: globalindustrial.com

Usually ships in 5 to 8 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

Price: $ 359.95
Product Information
Photo/Video Gallery
Warranty
Product Q&A
Accessories
GAS INFRARED CERAMIC HEATERS
Millivolt Standing Pilot Heater Natural Gas
Ideal for spot heating large areas. Dimpled tile assembly offers increased radiant efficiency. Made with corrosion resistant aluminized steel. Aluminum reflectors maximize radiant output. Features energy efficient direct spark ignition system and gas shut-off safety control. Millivolt Standing Pilot Heaters do not require electrical power and operate with 100% gas shut-off safety control. Allows horizontal or angle mounting. Includes protective radiant screen. CSA certified. 1 Year Limited Warranty.

Note: Installation and service must be performed by a licensed contractor and must conform to local codes. In absence of local codes, installation must comply with National Fuel Gas Code ANSI Z223.I (also known as NFPA 54) or CGA B149 installation codes. Requires 4CFM per 1000 BTU/hr of Mechanical Ventilation of the total installed capacity. Read Installation and Operating Instructions prior to purchase. Not certified or approved for RESIDENTIAL use.

Documents

Documents are in PDF format

Product Specifications

    • BRANDSunstar®
    • WIDTH INCHES20
    • DEPTH INCHES16-3/4
    • HEIGHT INCHES9-3/4
    • CONNECTION TYPE INCHES1/2
    • MIN. CLEARANCE COMBUSTIBLES AT HORIZONTAL INCHBack 24, Side 24, Ceiling 24, Below 48
    • MIN. CLEARANCE TO COMBUSTIBLE 30 DEGREE ANGLE INCHBack 8, Side 24, Ceiling 32, Below 48
    • ASSEMBLYAssembled
    • CONSTRUCTIONAluminized Steel / Aluminum Reflectors
    • BTU HIGH26000
    • BURNER PRESSURE W.C. INCHES6
    • GAS INLET PRESSURE MAX. WATER COLUMN INCHES14
    • GAS INLET PRESSURE MIN. WATER COLUMN INCHES4-1/2
    • FUEL TYPENatural Gas
    • IGNITION TYPEMillivolt Standing Pilot
    • LIMITED WARRANTY YEARS1
    • MANUFACTURER'S PART NUMBERSGM3-N1
    • MILLIVOLT (mV)750
    • CONNECTION TYPENPT Female
