Offers fuel savings up to 50%.

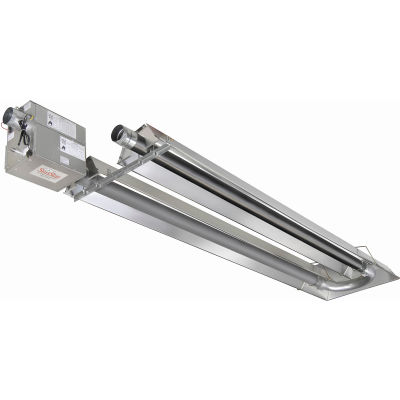

Tough Guy U-Tube heaters are ideal for high heat loss areas or spot heating. Positive pressure system pressurizes the combustion chamber. The emitter tubes are made of heat treated aluminized steel. All gas, electrical and flue connections are located at the same end of the heater. Reliable direct spark ignition and 100% gas shut-off safety control. Up to 40' of ducting in fresh air or 40' sidewall venting capability. Blower is located inside the burner box. Ideal for applications where minimal noise (less than 60dB) is desired. Heavy duty permanently lubricated and ball bearing blower motor for maintenance-free operation. Highly efficient aluminum reflectors. Includes diaphragm air switch, heavy duty cast iron burner and burner inspection sight glass. Diagnostic monitoring light system. 120V supply required. External 24V thermostat connection or line voltage operation. Tough Guy Series is ideal for Car Washes, Greenhouses, Swimming Pools, Waste Water Treatment plants, Dairy Barns and other high humidity environments. CSA certified. 5 Year Limited Warranty on tubes. 1 Year Limited Warranty on unit.

To help pick out the heater that?s right for you, click here to view the Heat Loss Estimating Chart.

Click here to view Installation and Operation Instructions.

Product Specifications

WIDTH INCHES	31
HEIGHT INCHES	6-1/4
LENGTH FEET	27-3/4
DUCT SIZE INCHES	4
TUBE LENGTH FEET	50
MIN. CLEARANCE COMBUSTIBLE AT 45 DEGREE ANGLE INCH	Front 84",Rear 24",Ceiling 6",Below 106",End 48"
MIN. CLEARANCE COMBUSTIBLES AT HORIZONTAL INCH	Side 84",Ceiling 6",Below 106",End 48"
MIN. MOUNTING HEIGHT FEET AT 45 DEGREE ANGLE	16
MIN. MOUNTING HEIGHT FEET AT HORIZONTAL	18
WEIGHT LBS	206.4
ASSEMBLY	Unassembled
CONSTRUCTION	Cast Iron Burner/Aluminum Reflectors
TUBE CONSTRUCTION	Heat Treated Aluminized Steel
BTU	200000
BURNER PRESSURE W.C. INCHES	10
GAS INLET PRESSURE MAX. WATER COLUMN INCHES	14
GAS INLET PRESSURE MIN. WATER COLUMN INCHES	11
FUEL TYPE	Propane
IGNITION TYPE	Direct Spark
DESCRIPTION	Tough Guy U-Shaped Tube
TYPE	Positive Pressure
MANUFACTURERS PART NUMBER	SPU200-50-TG-L5
