Presto Pneumatic Lift & Tilt Table 48 x 48 2000 Lb. Capacity


Write a review for this product.

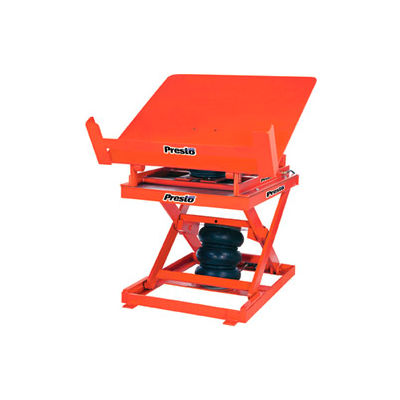

PRESTO PNEUMATIC LIFT & TILT TABLE

Versatile Table combines the features of a Scissor Lift and a Tilt Table.

Lift and Tilt Tables can be used anywhere shop air is available. Pneumatic table requires no electrical power and less maintenance than conventional lift/tilt tables, and is a cleaner choice since there is no hydraulic fluid to leak and contaminate products. Table lifts and tilts 30 degrees for adjustable angles and heights making it great for machine shop or assembly applications. Table is operated by lifetime warranty Firestone Airstroke™ actuator that can work a full day without duty cycle limitation. Bellows-type air bags form and contain columns of compressed air that provide the force to lift and tilt the table. Requires 80 psi @ 15 cfm of air and includes a safety pressure relief valve. An integral safety restraint chain guards against over-tilting. Air powered table must be lagged to a clean and level floor. Hand control is mounted on a free-standing pedestal that includes an 8' hose for remote operation. 2 Year Limited Warranty.

Custom Sizes/Designs are available; Call for more information.

Product Specifications

LENGTH INCHES	48 (Base)
WIDTH INCHES	36 (Base)
CAPACITY LBS	2000
COLOR FINISH	Orange
ASSEMBLY	Assembled
BRAND	Presto
CONSTRUCTION	Steel
LOWERED HEIGHT INCHES	15
MANUFACTURERS PART NUMBER	AXT20-4848
PLATFORM LENGTH INCHES	48
PLATFORM WIDTH INCHES	48
RAISED HEIGHT INCHES	39
TYPE	Presto Pneumatic Lift & Tilt Table
WEIGHT LBS	1345
