Leeson Motors Electric Gearmotors-Right-Angle Shaft, 90RPM, 1/4HP, TEFC, 90V, DC
See all 13 items in product family

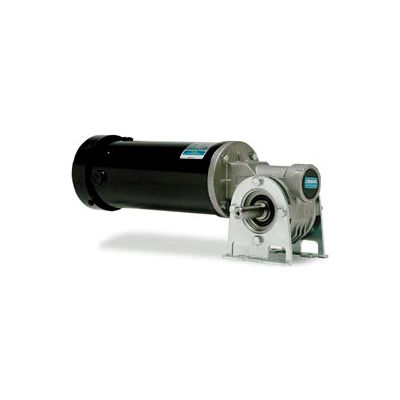

Leeson Motors Electric Gearmotors-Right-Angle Shaft, 90RPM, 1/4HP, TEFC, 90V, DC

Item #: WBB234758

Sold By:

Usually ships in 2 to 5 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

List Price: $563.00 Save up to 35%
Price: $363.95
Product Information
Product Q&A
DC Gearmotor with Right-Angle Shaft. 1/4HP, 90 RPM, Gear Ratio 19 to 1, 100 Lb. In. Full Load Torque, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 34 Frame, 90V, Name Plate Amps 2.6.

Worm-type right-angle gearing features hardened, steel worm with bronze worm wheel for long life and quiet operation. Single-piece die cast aluminum alloy housing is vacuum impregnated with Resinol for protection and sealing. This gearbox combines light weight with high tensile strength along with precision machining for alignment of bearings and gearing. For optimum seal life, high-temperature nitrile seals are used. Gearbox provided with solid output shaft, but can be converted to a hollow output shaft mounting by using snap-ring pliers and removing the snap ring and solid output shaft. Also the T-base feet are bolted to the gearbox, but can easily be removed and converted to face mounting.

Click here to see our full selection of Motor Controls and Drives.

Product Specifications

    • RPM90
    • TORQUE IN LBS100
    • FRAME34
    • TYPE-FRAME12B19-34G
    • AMP2.6
    • VOLTAGE90
    • WEIGHT13
    • CATALOG NOM1135289.00
    • UPC69172032182
    • RATIO TO 119
    • BRANDLeeson
