Baldor Motor KNM3534, .33HP, 1725RPM, 3PH, 60HZ, 56C, 3416M, TENV, F1 |
| |
|
 |
|
|
|
 |
|
|
|

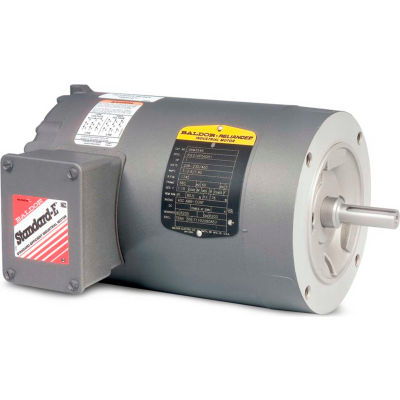

Baldor Motor KNM3534, .33HP, 1725RPM, 3PH, 60HZ, 56C, 3416M, TENV, F1
|
|
Sold by: globalindustrial.com
|
Availability:  Usually ships in 1 to 4 days
Stock No: WBB389288
|
|
|
| List Price $339.00 Save up to 38% |
| Quantity Discount |
| QTY |
Price |
| 1-5 |
$220.95 ea. |
| 6+ |
$210.95 ea. |
|
|
|
|
|
 |
Product Information |
 |
|
 |
Product Q&A |
 |
|
|
 |
Baldor Motor, .33HP,1725RPM,3PH,60HZ,56C,3416M,TENV,F1
Features:- Ball bearings
- Locked drive end bearing
- Heavy gauge steel frame
Typical Applications:
Pumps, fans, conveyors, machine tools, gear reducers.
Click here to see our full selection of Motor Controls and Drives.
Click for Motor Specs and Diagrams |
| Product Specifications |
| HORSEPOWER |
1/3 |
| ENCLOSURE |
TENV |
| FRAME |
56C |
| MOUNTING |
NO MOUNTING |
| RPM |
1725 |
| VOLTAGE |
208-230/460 |
| HERTZ |
60 |
| SERVICE FACTOR |
1 |
| AMBIENT TEMP C |
40 |
| WEIGHT |
22 |
| DRIVE END FLANGE |
C-Face |
| POLES |
4 |
| SPEC. NUMBER |
34K13-116 |
| SERIAL-NUMBER |
-- |
| POWER-FACTOR |
64 |
| BALDOR CATALOG NUMBER |
KNM3534 |
| C-DIMENSION INCHES |
10.25 |
| BRAND |
Baldor |
| BEARING-DRIVE-END |
6203 |
| BEARING-OPP-DRIVE-END |
6203 |
| DESIGN CODE |
B |
| FL AMPS |
1.5-1.4/.7 |
| FL EFFICIENCY |
70 |
| INSULATION CLASS |
B |
| KVA-CODE |
K |
| 208V AMPS |
1.5 |
| DOE-CODE |
-- |
|
|
|
|
|
|
