Baldor Motor L3510-50, 1HP, 1425RPM, 1PH, 50HZ, 56, 3532L, TEFC, F1, N
Remove

      Items
Baldor Motor L3510-50, 1HP, 1425RPM, 1PH, 50HZ, 56, 3532L, TEFC, F1, N Baldor Motor L3510-50, 1HP, 1425RPM, 1PH, 50HZ, 56, 3532L, TEFC, F1, N


Home   >  Motors & Power Transmission   >  Electric Motors-General Purpose   >  Single Phase Motors   >  Baldor Single Phase Totally Enclosed General Purpose Motors   >  Baldor Motor L3510-50, 1HP, 1425RPM, 1PH, 50HZ, 56, 3532L, TEFC, F1, N

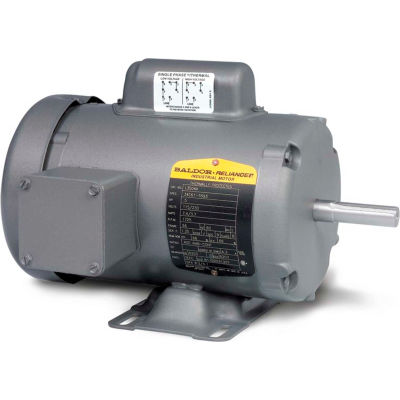

Baldor Motor L3510-50, 1HP, 1425RPM, 1PH, 50HZ, 56, 3532L, TEFC, F1, N
Email This Page Printer Friendly Version
Baldor Motor L3510-50, 1HP, 1425RPM, 1PH, 50HZ, 56, 3532L, TEFC, F1, N
Sold by: globalindustrial.com
Availability:  Usually ships in 1 to 4 days
Stock No: WBB389661
List Price $573.00    Save up to 38%
Quantity Discount
QTY Price
1-5 $373.95 ea.
6+ $356.95 ea.

Chat with a Salesperson Add this item to your list
Qty:   ADD TO CART

Product Information
Product Q&A
 Write a review for this product. Write A Review
Baldor Motor, 1HP,1425RPM,1PH,50HZ,56,3532L,TEFC,F1,N

Features:
  • Windings tied each end at every slot for rigidity
  • Ball bearings
  • High temperature insulation
  • Copper windings
Typical Applications:
Suitable for a wide variety of applications where only 50 hertz power is available. Motors are designed to be used at rated voltages with tolerance of +/-½ 15% on voltage.

Click here to see our full selection of Motor Controls and Drives.

Click for Motor Specs and Diagrams
Product Specifications
HORSEPOWER 1
ENCLOSURE TEFC
FRAME 56
MOUNTING RIGID
RPM 1425
VOLTAGE 110/220
HERTZ 50
SERVICE FACTOR 1.15
AMBIENT TEMP C 40
WEIGHT 46
BALDOR CATALOG NUMBER L3510-50
DOE-CODE --
208V AMPS --
KVA-CODE J
INSULATION CLASS B
FL EFFICIENCY 68
POWER-FACTOR 82
SERIAL-NUMBER --
SPEC. NUMBER 35C11Y990
POLES 4
DRIVE END FLANGE Standard
C-DIMENSION INCHES 14.12
BRAND Baldor
BEARING-DRIVE-END 6205
FL AMPS 12.4/6.2
DESIGN CODE L
BEARING-OPP-DRIVE-END 6203
