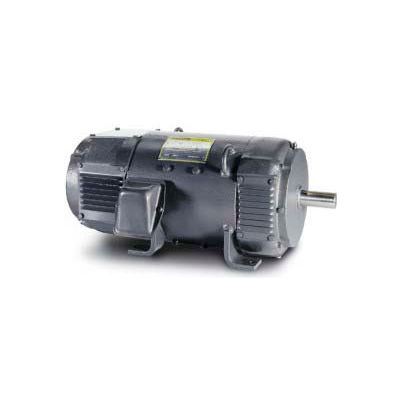

Baldor Motor CD2015P-2, 15HP, 1750/2300RPM, DC, 258ATC, DPFG, F1

Item #: WBB388784

Sold By: globalindustrial.com

Usually ships in 2 to 5 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

List Price: $9,133.00 Save up to 47%
qty Price
1-5 $5,105.00 ea.
6+ $4,866.00 ea.

Add to list
Product Information
Product Q&A
Baldor Motor, 15HP,1750/2300RPM,DC,258ATC,DPFG,F1

Features:
  • Includes thermostat on interpole
  • Class F insulation system resistant to dirt, carbon, dust and moisture
  • High dielectric stability
  • Low moment of inertia armature for fast response
  • Constant pressure brush springs and longer brushes for reduced maintenance
  • Includes grease fittings and reliefs for bearing maintenance
Typical Applications:
SCR drive motors for use with 3 phase rectified power; power code C and D or M-G sets. Maximum RPM by field weakening. Provisions for tach mounting. May be converted to blower ventilated (DPBV) for extended constant torque speed range.

Click here to see our full selection of Motor Controls and Drives.

Click For Installation Manual

Product Specifications

  • HORSEPOWER15
  • ENCLOSUREDPFG
  • FRAME258ATC
  • MOUNTINGF1
  • RPM1750/2300
  • VOLTAGE240
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • WEIGHT409
  • FORM FACTORN/A
  • FRAME SIZE258ATC
  • FULL LOAD AMPS - FIELD2.52-1.6/1.26-.8
  • MECHANICAL SPECIFICATION NUMBER880-1
  • ODE BEARING6207
  • RECOMMENDED SCR CONTROLN/A
  • SPECIFICATION NUMBERP25805370153
  • TACH MOUNTING KITN/A
  • BRANDBaldor
  • FILTER KITN/A
  • FIELD VOLTAGE120/240
  • DE BEARING6209
  • BLOWER KITN/A
  • BALDOR TYPEN258
  • ELECTRICAL SPECIFICATION NUMBER2580537
  • BASERG
  • INSULATION CLASSF
  • ARMATURE VOLTAGE240
  • BALDOR CATALOG NUMBERCD2015P-2
