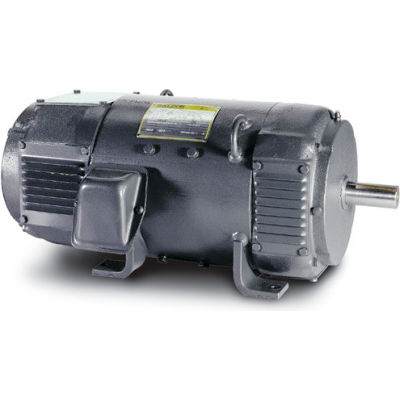

Baldor Motor D2020P, 20HP/1750-2300RPM/DC/NEMA 259AT


Write a review for this product.

Baldor Motor, 20HP/1750-2300RPM/DC/NEMA 259AT

Features:

Includes thermostat on interpole
Class F insulation system resistant to dirt, carbon, dust and moisture
High dielectric stability
Low moment of inertia armature for fast response
Constant pressure brush springs and longer brushes for reduced maintenance
Includes grease fittings and reliefs for bearing maintenance

Typical Applications:
SCR drive motors for use with 3 phase rectified power; power code C and D or M-G sets. Maximum RPM by field weakening. Provisions for tach mounting. May be converted to blower ventilated (DPBV) for extended constant torque speed range.

Click here to see our full selection of Motor Controls and Drives.

Click for Motor Specs and Diagrams

Product Specifications

HORSEPOWER	20
ENCLOSURE	DPFG
FRAME	259AT
MOUNTING	F1
RPM	1750/2300
VOLTAGE	240
SERVICE FACTOR	1
AMBIENT TEMP C	40
WEIGHT	429
ELECTRICAL SPECIFICATION NUMBER	2590183
BASE	RG
BALDOR CATALOG NUMBER	D2020P
ARMATURE VOLTAGE	240
INSULATION CLASS	F
BRAND	Baldor
TACH MOUNTING KIT	N/A
SPECIFICATION NUMBER	P25901830217
RECOMMENDED SCR CONTROL	N/A
BALDOR TYPE	N259
BLOWER KIT	N/A
DE BEARING	6209
FIELD VOLTAGE	150/300
FILTER KIT	N/A
FORM FACTOR	N/A
FRAME SIZE	259AT
ODE BEARING	6207
MECHANICAL SPECIFICATION NUMBER	876-1
FULL LOAD AMPS - FIELD	2.48-1.5/1.24-.75
