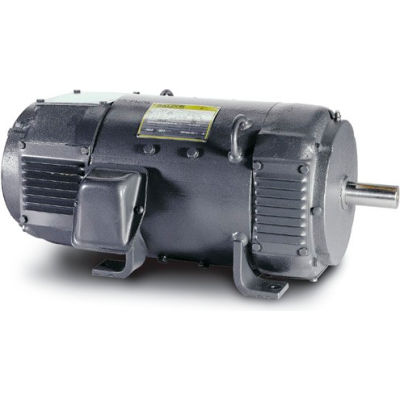

Baldor Motor D5010P, 10HP, 1750/2300RPM, DC, 219AT, DPFG, F1


Write a review for this product.

Baldor Motor, 10HP,1750/2300RPM,DC,219AT,DPFG,F1

Features:

Includes thermostat on interpole
Class F insulation system resistant to dirt, carbon, dust and moisture
High dielectric stability
Low moment of inertia armature for fast response
Constant pressure brush springs and longer brushes for reduced maintenance
Includes grease fittings and reliefs for bearing maintenance

Typical Applications:
SCR drive motors for use with 3 phase rectified power; power code C and D or M-G sets. Maximum RPM by field weakening. Provisions for tach mounting. May be converted to blower ventilated (DPBV) for extended constant torque speed range.

Click here to see our full selection of Motor Controls and Drives.

Click for Motor Specs and Diagrams

Product Specifications

HORSEPOWER	10
ENCLOSURE	DPFG
FRAME	219AT
MOUNTING	Foot Mounted
RPM	1750/2300
VOLTAGE	500
SERVICE FACTOR	1
AMBIENT TEMP C	40
WEIGHT	255
FULL LOAD AMPS - FIELD	2.34-1.4/1.17-.7
FRAME SIZE	219AT
FORM FACTOR	N/A
FILTER KIT	N/A
FIELD VOLTAGE	150/300
DE BEARING	6207
BLOWER KIT	N/A
BALDOR TYPE	N219
ELECTRICAL SPECIFICATION NUMBER	2192148
BASE	RG
BALDOR CATALOG NUMBER	D5010P
ARMATURE VOLTAGE	500
INSULATION CLASS	F
BRAND	Baldor
MECHANICAL SPECIFICATION NUMBER	876-1
ODE BEARING	6207
RECOMMENDED SCR CONTROL	N/A
DRIVE END FLANGE	Standard
TACH MOUNTING KIT	N/A
SPECIFICATION NUMBER	T21R8002
