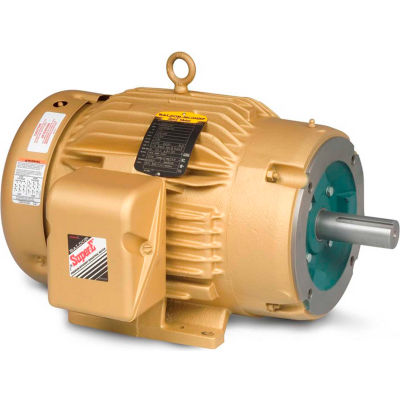

Actual product may differ from image shown

Baldor Motor CEM3587T, 2HP, 1755RPM, 3PH, 60HZ, 145TC, 0535M, TEFC, F1

Rollover image to zoom in

Click image to enlarge

See all 156 items in product family

Baldor Motor CEM3587T, 2HP, 1755RPM, 3PH, 60HZ, 145TC, 0535M, TEFC, F1

Item #: WBB388619

Sold By: globalindustrial.com

Usually ships in 10 to 13 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

List Price: $927.00 Save up to 40%
Qty Price
1-2
$579.00 ea.
3+ $554.00 ea.
Product Information
Product Q&A
Baldor Motor, 2HP,1755RPM,3PH,60HZ,145TC,0535M,TEFC,F1

Features:
  • Heavy gauge steel and cast iron frames
  • Ball bearings
  • ISR® (Inverter Spike Resistant®) copper windings
  • Low-loss electrical grade lamination steel
  • Three year warranty
Typical Applications:
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives.

Documents are in PDF format

Product Specifications

    • HORSEPOWER2
    • ENCLOSURETEFC
    • FRAME145TC
    • MOUNTINGRigid
    • RPM1750
    • MOTOR RPM 60Hz1750
    • VOLTAGE208-230/460
    • HERTZ60
    • SERVICE FACTOR1.15
    • AMBIENT TEMP C40
    • WEIGHT64
    • POLES4
    • SPEC. NUMBER05C052X095G1
    • FL EFFICIENCY86.5
    • DOE-CODE010A
    • BEARING-OPP-DRIVE-END6203
    • SERIAL-NUMBER--
    • INSULATION CLASSF
    • BEARING-DRIVE-END6205
    • MANUFACTURER PART #CEM3587T
    • POWER-FACTOR75
    • FL AMPS5.8/2.9
    • DESIGN CODEB
    • DRIVE END FLANGEC-Face
    • C-DIMENSION INCHES13.03
    • KVA-CODEL
    • is_motorYes
    • BRANDBaldor
    • 208V AMPS--
