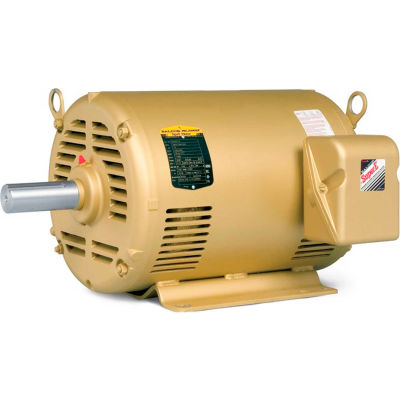

Baldor Motor EFM2547T, 60HP, 1775RPM, 3PH, 60HZ, 364T, 4278M, OPSB, F2

Item #: WBB390362

Sold By: globalindustrial.com

Usually ships in 2 to 5 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

List Price: $5,532.00 Save up to 38%
qty Price
1-5 $3,598.00 ea.
6+ $3,429.00 ea.
Add to list
Product Information
Product Q&A
Baldor Motor, 60HP,1775RPM,3PH,60HZ,364T,4278M,OPSB,F2

Features:
  • Heavy duty frames
  • Ball bearings
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Low-loss electrical lamination grade steel
  • Three year warranty.
Typical Applications:
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives.

Documents are in PDF format

Product Specifications

  • HORSEPOWER60
  • ENCLOSUREOPSB
  • FRAME364T
  • MOUNTINGRIGID
  • RPM1775
  • VOLTAGE230/460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • WEIGHT782
  • FL EFFICIENCY95
  • INSULATION CLASSF
  • KVA-CODEG
  • POWER-FACTOR87
  • SERIAL-NUMBER--
  • SPEC. NUMBER42E213W587
  • CUSTOMER-PART-NUMBER--
  • GREASEPOLYREX EM
  • SPACE-HEATER-AMPS--
  • SPACE-HEATER-VOLTS--
  • MAX. SPACE HEATER TEMP.--
  • FL AMPS136/68
  • DESIGN CODEB
  • BEARING-OPP-DRIVE-END6311
  • BEARING-DRIVE-END6313
  • BALDOR CATALOG NUMBEREFM2547T
  • BRANDBaldor
  • 208V AMPS144
  • DOE-CODE010A
  • POLES4
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES30.69
