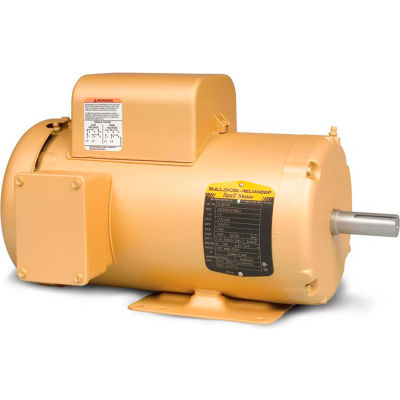

Baldor Motor EL3510, 1HP, 1760RPM, 1PH, 60HZ, 56H, 3532LC, TEFC, F1

Item #: WBB390489

Sold By: globalindustrial.com

Usually ships in 2 to 5 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

List Price: $674.00 Save: up to 34%
Price: $446.95
Add to list
Product Information
Product Q&A
Baldor Motor, 1HP,1760RPM,1PH,60HZ,56H,3532LC,TEFC,F1

Features:
  • Heavy gauge steel frames
  • Ball bearings
  • ISR® (Inverter Spike Resistant)copper windings
  • Low-loss electrical grade laminations steel
  • Three year warranty
Typical Applications:
Typical applications include operations where continuous or frequent duty is required. Super-E single phase motors are designed to conserve energy over extended time periods.

Documents are in PDF format

Product Specifications

  • HORSEPOWER1
  • ENCLOSURETEFC
  • FRAME56H
  • MOUNTINGRIGID
  • RPM1760
  • VOLTAGE115/230
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • WEIGHT44
  • POWER-FACTOR91
  • SERIAL-NUMBER--
  • SPEC. NUMBER35J385S758G1
  • POLES4
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES13.81
  • BALDOR CATALOG NUMBEREL3510
  • DOE-CODE--
  • 208V AMPS4.6
  • KVA-CODEL
  • INSULATION CLASSF
  • FL EFFICIENCY82.5
  • FL AMPS8.5/4.25
  • DESIGN CODEL
  • BEARING-OPP-DRIVE-END6203
  • BEARING-DRIVE-END6205
  • BRANDBaldor
