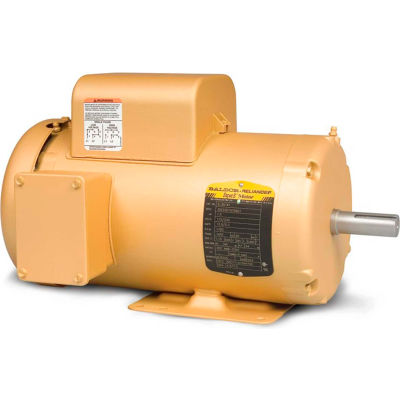

Baldor Motor EL3605T, 2HP, 1740RPM, 1PH, 60HZ, 184T, 3623LC, TEFC, F1

Rollover image to zoom in

Click image to enlarge

See all 61 items in product family

Baldor Motor EL3605T, 2HP, 1740RPM, 1PH, 60HZ, 184T, 3623LC, TEFC, F1

Item #: WBB390191

Sold By: globalindustrial.com

Usually ships in 2 to 5 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

List Price: $1,050.00 Save up to 40%
Qty Price
1-2
$655.00 ea.
3+ $627.00 ea.
Product Information
Product Q&A
Baldor Motor, 2HP,1740RPM,1PH,60HZ,184T,3623LC,TEFC,F1

Features:
  • Heavy gauge steel frames
  • Ball bearings
  • ISR® (Inverter Spike Resistant)copper windings
  • Low-loss electrical grade laminations steel
  • Three year warranty
Typical Applications:
Typical applications include operations where continuous or frequent duty is required. Super-E single phase motors are designed to conserve energy over extended time periods.

Documents are in PDF format

Product Specifications

    • HORSEPOWER2
    • ENCLOSURETEFC
    • FRAME182T
    • MOUNTINGRigid
    • RPM1740
    • MOTOR RPM 60Hz1740
    • VOLTAGE115/230
    • HERTZ60
    • SERVICE FACTOR1.15
    • AMBIENT TEMP C40
    • WEIGHT64
    • SERIAL-NUMBER--
    • BEARING-DRIVE-END6206
    • INSULATION CLASSF
    • FL EFFICIENCY82.5
    • POWER-FACTOR90
    • FL AMPS17.6/8.8
    • DOE-CODE--
    • 208V AMPS--
    • SPEC. NUMBER36E004Y546G1
    • POLES4
    • DRIVE END FLANGEStandard
    • C-DIMENSION INCHES16.56
    • is_motorYes
    • BRANDBaldor
    • MANUFACTURER PART #EL3605T
    • KVA-CODEJ
    • BEARING-OPP-DRIVE-END6205
    • DESIGN CODEL
