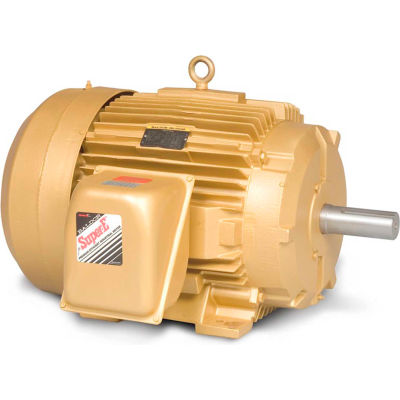

Baldor Motor EM4310T, 60HP, 3550RPM, 3PH, 60HZ, 364TS, 1452M, TEFC, F |
| |
|
 |
|
|
|
 |
|
|
|
Baldor Motor EM4310T, 60HP, 3550RPM, 3PH, 60HZ, 364TS, 1452M, TEFC, F
|
|
Sold by: globalindustrial.com
|
Availability:  Usually ships in 1 to 4 days
Stock No: WBB389888
|
|
|
| List Price $7,964.00 Save up to 38% |
| Quantity Discount |
| QTY |
Price |
| 1-5 |
$5,180.00 ea. |
| 6+ |
$4,937.00 ea. |
|
|
|
|
|
 |
Product Information |
 |
|
 |
Product Q&A |
 |
|
|
 |
Baldor Motor, 60HP,3550RPM,3PH,60HZ,364TS,1452M,TEFC,F
Features:- Ball bearings
- Suitable for mounting any position
- Heavy gauge steel and cast iron frames
Typical Applications:
Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.
Click here to see our full selection of Motor Controls and Drives.
Click for Motor Specs and Diagrams |
| Product Specifications |
| HORSEPOWER |
60 |
| ENCLOSURE |
TEFC |
| FRAME |
364TS |
| MOUNTING |
Foot Mounted |
| RPM |
3560 |
| VOLTAGE |
230/460 |
| HERTZ |
60 |
| DUTY |
CONT |
| SERVICE FACTOR |
1.15 |
| WEIGHT |
816 |
| POWER-FACTOR |
91 |
| EFFICIENCY-2 |
94.5 |
| SPEC. NUMBER |
P36G3404 |
| AMBIENT-TEMPERATURE |
40 |
| BRG-DE-AFBMA |
65BC03J30X |
| BRG-ODE-AFBMA |
65BC03J30X |
| EFFICIENCY-1 |
-- |
| EFFICIENCY-3 |
-- |
| MOTOR-WEIGHT |
-- |
| MAX. KVAR |
5 |
| TYPE |
P |
| POLES |
2 |
| DRIVE END FLANGE |
Standard |
| C-DIMENSION INCHES |
30.72 |
| BALDOR CATALOG NUMBER |
EM4310T |
| INSULATION CLASS |
F |
| KVA-CODE |
F |
| BRAND |
Baldor |
| FL EFFICIENCY |
95 |
| FL AMPS |
130/65.1 |
| DESIGN CODE |
B |
| BEARING-OPP-DRIVE-END |
6313 |
| BEARING-DRIVE-END |
6313 |
| SERIAL-NUMBER |
-- |
|
|
|
|
 |
|
|
