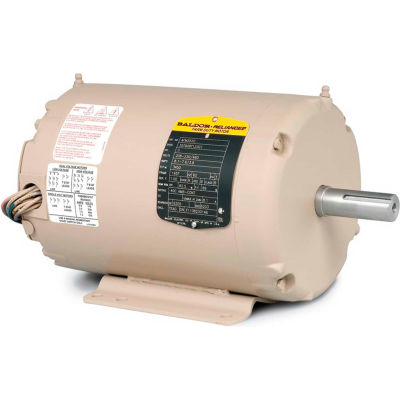

Baldor Motor AFM3530, 1.5HP, 3450RPM, 3PH, 60HZ, 143TZ, 3424M, TEAO

Rollover image to zoom in

Click image to enlarge

See all 80 items in product family

Baldor Motor AFM3530, 1.5HP, 3450RPM, 3PH, 60HZ, 143TZ, 3424M, TEAO

Item #: WBB388648

Sold By: globalindustrial.com

Usually ships in 2 to 5 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

List Price: $447.00 Save up to 40%
Qty Price
1-2 $278.95 ea.
3+ $266.95 ea.
Product Information
Customer Review
Product Q&A
Accessories
Baldor Motor, 1.5HP,3450RPM,3PH,60HZ,143TZ,3424M,TEAO

Features:
  • Lubrication fittings on Nema T frames for eazy on-site maintenance
  • Ball bearings
  • Corrosion protected with epoxy finish
  • Normally-closed thermostats on three phase motors
Typical Applications:
Designed for powering aeration fans used on farm grain storage, exhaust fans, air handling systems, etc.

Documents are in PDF format

Product Specifications

    • HORSEPOWER1.5
    • ENCLOSURETEAO
    • FRAME143TZ
    • BRANDBaldor
    • MOUNTINGRigid
    • MOTOR RPM 60Hz3450
    • RPM3450
    • PHASE3
    • VOLTAGE208-230/460
    • HERTZ60
    • SERVICE FACTOR1.15
    • AMBIENT TEMP C40
    • WEIGHT31
    • MANUFACTURERS PART NUMBERAFM3530
    • is_motorYes
    • FL AMPS4.9-4.6/2.3
    • DESIGN CODEB
    • BEARING-DRIVE-END6205
    • DOE-CODE--
    • 208V AMPS4.9
    • POWER-FACTOR74
    • OPPOSITE END BEARING SIZE6203
    • INSULATION CLASSB
    • FL EFFICIENCY80
    • SPEC. NUMBER34K954-0283G1
    • SERIAL-NUMBER--
    • KVA-CODEL
    • POLES2
    • C-DIMENSION INCHES12.45
    • DRIVE END FLANGEStandard
