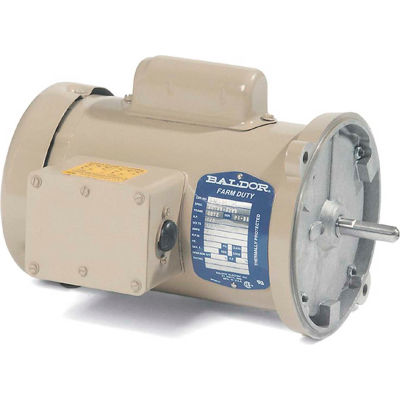

Baldor Electric Motors ANFL3510M, 1HP, 1725RPM, 1PH, 60HZ, 56YZ, 3524L, TEFC, F1

Item #: WBB388678

Sold By: globalindustrial.com

Usually ships in 2 to 5 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

List Price: $743.00 Save up to 38%
qty Price
1-5 $491.95 ea.
6+ $461.95 ea.

Add to list
Product Information
Product Q&A
Baldor Motor, 1HP,1725RPM,1PH,60HZ,56YZ,3524L,TEFC,F1

Features:
  • Mechanical protection of centrifugal switch to prevent damage to motor in case of overspeed
  • Manual reset thermal protection mounted in oversize conduit box
  • Farm Duty epoxy paint and thermal cover protect motor from harsh environments
  • Extended shaft (fan end) with wrench flats for manual jogging of auger. NEMA 56N flange connects to the drive/gear box assembly
Typical Applications:
Poultry feed auger drive systems.

Click here to see our full selection of Motor Controls and Drives.

Click for Motor Specs and Diagrams

Product Specifications

  • HORSEPOWER1
  • ENCLOSURETEFC
  • FRAME56YZ
  • BRANDBaldor
  • MOUNTINGNO MOUNTING
  • RPM1725
  • PHASE1
  • VOLTAGE115/230
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • OPPOSITE END BEARING6203
  • WEIGHT41
  • BALDOR CATALOG NUMBERANFL3510M
  • BEARING-DRIVE-END6203
  • DESIGN CODEL
  • DOE-CODE--
  • FL AMPS13/6.5
  • POLES4
  • C-DIMENSION INCHES13.55
  • DRIVE END FLANGEOIL BURNER FLANGE
  • SPEC. NUMBER35Q142Y842
  • SERIAL-NUMBER--
  • POWER-FACTOR73
  • KVA-CODEK
  • 208V AMPS6.8
  • FL EFFICIENCY67
  • INSULATION-CLASSB
