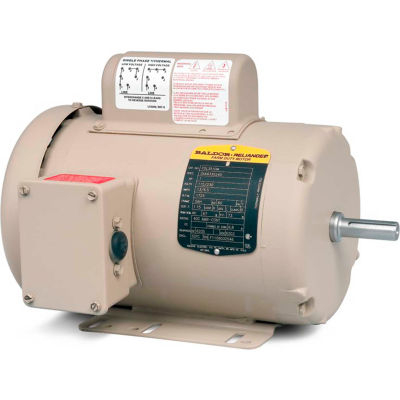

Baldor Motor FDL3510M, 1HP, 1725RPM, 1PH, 60HZ, 56H, 3524L, TEFC, F1, N |
| |
|
 |
|
|
|
 |
|
|
|
Baldor Motor FDL3510M, 1HP, 1725RPM, 1PH, 60HZ, 56H, 3524L, TEFC, F1, N
|
|
Sold by: globalindustrial.com
|
Availability:  Usually ships in 1 to 4 days
Stock No: WBB389824
|
|
|
| List Price $578.00 Save up to 38% |
| Quantity Discount |
| QTY |
Price |
| 1-5 |
$376.95 ea. |
| 6+ |
$359.95 ea. |
|
|
|
|
|
 |
Product Information |
 |
|
 |
Product Q&A |
 |
|
|
 |
Baldor Motor, 1HP,1725RPM,1PH,60HZ,56H,3524L,TEFC,F1,N
Features:- Ball bearings, lubricated with high temperature moisture-resistant grease
- Condensation drains
- Gasketed cast conduit boxed
- Farm duty epoxy paint for protection from harsh environments
- 1.00 Service Factor
Typical Applications:
Wide variety of agri-duty and industrial applications.
Click here to see our full selection of Motor Controls and Drives.
Click for Motor Specs and Diagrams |
| Product Specifications |
| HORSEPOWER |
1 |
| ENCLOSURE |
TEFC |
| FRAME |
56H |
| BRAND |
Baldor |
| MOUNTING |
RIGID |
| RPM |
1725 |
| PHASE |
1 |
| VOLTAGE |
115/230 |
| HERTZ |
60 |
| SERVICE FACTOR |
1.15 |
| AMBIENT TEMP C |
40 |
| OPPOSITE END BEARING |
6203 |
| WEIGHT |
40 |
| BEARING-DRIVE-END |
6205 |
| SPEC. NUMBER |
35K633S245 |
| SERIAL-NUMBER |
-- |
| POWER-FACTOR |
73 |
| KVA-CODE |
K |
| INSULATION-CLASS |
B |
| FL EFFICIENCY |
67 |
| 208V AMPS |
6.8 |
| BALDOR CATALOG NUMBER |
FDL3510M |
| DESIGN CODE |
L |
| DRIVE END FLANGE |
Standard |
| C-DIMENSION INCHES |
12.93 |
| DOE-CODE |
-- |
| FL AMPS |
13/6.5 |
| POLES |
4 |
|
|
|
|
|
