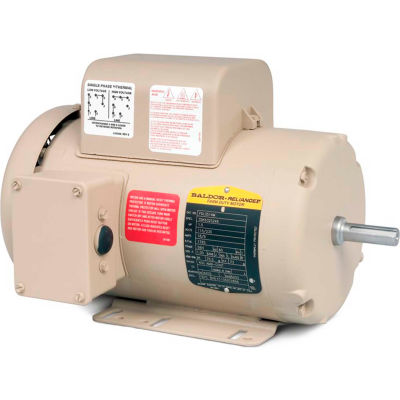

Baldor Motor FDL3611M, 2HP, 1725RPM, 1PH, 60HZ, 184, 3634L, TEFC, F1, N

Rollover image to zoom in

Click image to enlarge

See all 80 items in product family

Baldor Motor FDL3611M, 2HP, 1725RPM, 1PH, 60HZ, 184, 3634L, TEFC, F1, N

Item #: WBB389877

Sold By: globalindustrial.com

Usually ships in 2 to 5 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

List Price: $1,069.00 Save up to 38%
Qty Price
1-5
$697.00 ea.
6+ $665.00 ea.
Product Information
Product Q&A
Accessories
Baldor Motor, 2HP,1725RPM,1PH,60HZ,184,3634L,TEFC,F1,N

Features:
  • Ball bearings, lubricated with high temperature moisture-resistant grease
  • Condensation drains
  • Gasketed cast conduit boxed
  • Farm duty epoxy paint for protection from harsh environments
  • 1.00 Service Factor
Typical Applications:
Wide variety of agri-duty and industrial applications.

Documents are in PDF format

Product Specifications

    • HORSEPOWER2
    • ENCLOSURETEFC
    • FRAME184
    • BRANDBaldor
    • MOUNTINGRigid
    • MOTOR RPM 60Hz1725
    • RPM1725
    • PHASE1
    • VOLTAGE115/230
    • HERTZ60
    • SERVICE FACTOR1
    • AMBIENT TEMP C40
    • WEIGHT75
    • MANUFACTURERS PART NUMBERFDL3611M
    • FL AMPS24.8/12.4
    • BEARING-DRIVE-END6206
    • DESIGN CODEL
    • DOE-CODE--
    • 208V AMPS--
    • POWER-FACTOR73
    • OPPOSITE END BEARING SIZE6205
    • FL EFFICIENCY74
    • SPEC. NUMBER36G217X416
    • is_motorYes
    • DRIVE END FLANGEStandard
    • C-DIMENSION INCHES15.68
    • SERIAL-NUMBER--
    • POLES4
    • INSULATION CLASSB
    • KVA-CODEL
