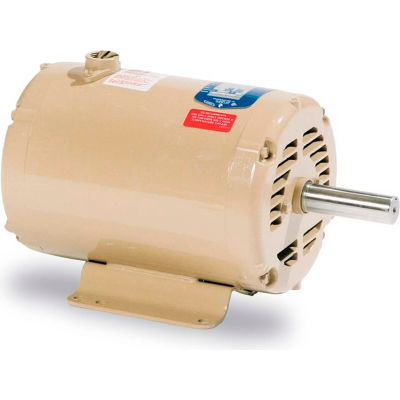

Baldor Motor UCC5700, 5-7 AIR OVERHP, 3450RPM, 1PH, 60HZ, 184TZ, 36

Rollover image to zoom in

Click image to enlarge

See all 80 items in product family

Baldor Motor UCC5700, 5-7 AIR OVERHP, 3450RPM, 1PH, 60HZ, 184TZ, 36

Item #: WBB390587

Sold By: globalindustrial.com

Usually ships in 2 to 5 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

List Price: $1,014.00 Save up to 31%
Qty Price
1-2 $724.00 ea.
3+ $696.00 ea.
Product Information
Customer Review
Product Q&A
Baldor Motor, 5-7 AIR OVERHP,3450RPM,1PH,60HZ,184TZ,36

Features:
  • TEAO design prevents entrance of rodents, insects and other foreign matter
  • High full load efficiency for reduced operating cost
  • No mechanical switch to wear
  • No noise and vibration from regeneration
  • Less sensitive to voltage variations
  • Soft start
  • Thermostats
  • Epoxy paint
  • 1.00 Service Factor
Typical Applications:
Specifically engineered for use on vane axial fan crop dryers.

Documents are in PDF format

Product Specifications

    • HORSEPOWER5-7
    • ENCLOSUREOPEN
    • FRAME184TZ
    • BRANDBaldor
    • MOUNTINGRigid
    • MOTOR RPM 60Hz3450
    • RPM3450
    • PHASE1
    • VOLTAGE230
    • HERTZ60
    • SERVICE FACTOR1
    • AMBIENT TEMP C40
    • WEIGHT71
    • MANUFACTURERS PART NUMBERUCC5700
    • INSULATION CLASSF
    • C-DIMENSION INCHES15.38
    • DRIVE END FLANGEStandard
    • OPPOSITE END BEARING SIZE6205
    • POLES2
    • FL AMPS19.5-29
    • DOE-CODE--
    • DESIGN CODE-
    • BEARING-DRIVE-END6206
    • SPEC. NUMBER36F548W873
    • POWER-FACTOR97
    • KVA-CODEC
    • FL EFFICIENCY79
    • 208V AMPS--
    • is_motorYes
    • SERIAL-NUMBER--
