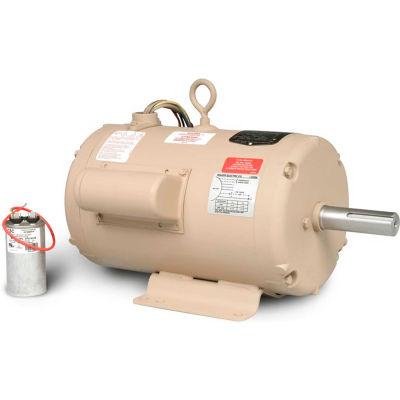

Baldor Motor UCLE7510, 7.5-10 AIR OVERHP, 3450RPM, 1PH, 60HZ, 182TZ

Rollover image to zoom in

Click image to enlarge

See all 80 items in product family

Baldor Motor UCLE7510, 7.5-10 AIR OVERHP, 3450RPM, 1PH, 60HZ, 182TZ

Item #: WBB390915

Sold By: globalindustrial.com

Usually ships in 2 to 5 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

List Price: $1,281.00 Save up to 40%
Qty Price
1-2
$799.00 ea.
3+ $765.00 ea.
Product Information
Product Q&A
Baldor Motor, 7.5-10 AIR OVERHP,3450RPM,1PH,60HZ,182TZ

Features:
  • Shaft 3/4 longer than NEMA standard
  • Shaft keyed, drilled and tapped with internal 1/4-20 tap 1 deep
  • 1.00 Service Factor
  • Thermostats
  • Epoxy paint
Typical Applications:
Specifically engineered for use on vane axial fan crop dryers.

Documents are in PDF format

Product Specifications

    • HORSEPOWER7.5-10
    • ENCLOSURETEAO
    • FRAME182TZ
    • BRANDBaldor
    • MOUNTINGRigid
    • MOTOR RPM 60Hz3450
    • RPM3450
    • PHASE1
    • VOLTAGE230
    • HERTZ60
    • SERVICE FACTOR1
    • AMBIENT TEMP C40
    • WEIGHT92
    • MANUFACTURERS PART NUMBERUCLE7510
    • POLES2
    • KVA-CODEF
    • is_motorYes
    • SPEC. NUMBER36H990X955G2
    • FL EFFICIENCY85.5
    • BEARING-DRIVE-END6206
    • INSULATION CLASSF
    • OPPOSITE END BEARING SIZE6205
    • POWER-FACTOR95
    • 208V AMPS28
    • SERIAL-NUMBER--
    • DOE-CODE--
    • FL AMPS38
    • DESIGN CODE-
    • C-DIMENSION INCHES16.88
    • DRIVE END FLANGEStandard
