Baldor Motor UCME3145, 3-4.5HP, 3450RPM, 3PH, 60HZ, 143TZ, 3528M, TEA

Remove

Items

Baldor Motor UCME3145, 3-4.5HP, 3450RPM, 3PH, 60HZ, 143TZ, 3528M, TEA

Home > Motors & Power Transmission > Electric Motors-Definite Purpose > Agricultural Motors > Baldor Farm Duty Motors > Baldor Motor UCME3145, 3-4.5HP, 3450RPM, 3PH, 60HZ, 143TZ, 3528M, TEA

See all 113 items in product family

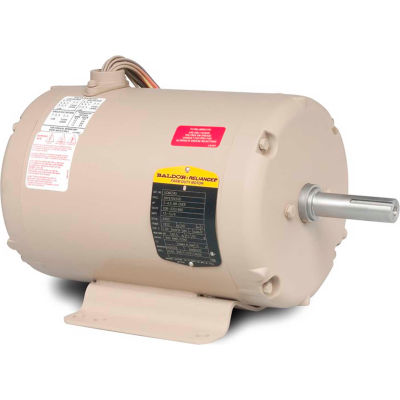

Baldor Motor UCME3145, 3-4.5HP, 3450RPM, 3PH, 60HZ, 143TZ, 3528M, TEA

Sold by: globalindustrial.com

Availability:

Usually ships in 1 to 4 days
Stock No: WBB390625

List Price $706.00 Save up to 38%

Quantity Discount

QTY	Price
1-5	$459.95 ea.
6+	$438.95 ea.

Qty:

Product Information

Product Q&A


Write a review for this product.

Baldor Motor, 3-4.5HP,3450RPM,3PH,60HZ,143TZ,3528M,TEA

Features:

Shaft 3/4" longer than NEMA standard
Shaft keyed, drilled and tapped with internal 1/4-20 tap 1" deep
1.00 Service Factor
Thermostats
Epoxy paint

Typical Applications:
Specifically engineered for use on vane axial fan crop dryers.

Click here to see our full selection of Motor Controls and Drives.

Click for Motor Specs and Diagrams

Product Specifications

HORSEPOWER	3-4.5
ENCLOSURE	TEAO
FRAME	143TZ
BRAND	Baldor
MOUNTING	RIGID
RPM	3450
PHASE	3
VOLTAGE	208-230/460
HERTZ	60
SERVICE FACTOR	1
AMBIENT TEMP C	40
OPPOSITE END BEARING	6203
WEIGHT	45
BEARING-DRIVE-END	6206
DESIGN CODE	B
DOE-CODE	--
FL AMPS	13-12/6
POLES	2
C-DIMENSION INCHES	13.37
DRIVE END FLANGE	Standard
208V AMPS	13
FL EFFICIENCY	--
INSULATION-CLASS	H
KVA-CODE	K
POWER-FACTOR	--
SERIAL-NUMBER	--
SPEC. NUMBER	35T931S055G1
BALDOR CATALOG NUMBER	UCME3145
