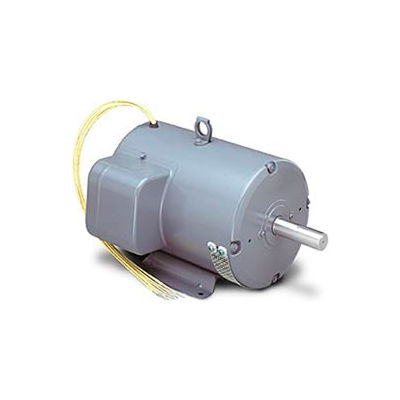

Leeson Motor - 5-7.5HP, 208-230/460V, 3450RPM, DP, Rigid Mount, 1.0 S.F. |
| |
|
 |
|
|
|
 |
|
|
|
Leeson Motor - 5-7.5HP, 208-230/460V, 3450RPM, DP, Rigid Mount, 1.0 S.F.
|
|
Sold by: globalindustrial.com
|
Availability:  Usually ships in 2 to 5 days
Stock No: WBB217628
|
|
|
| List Price $897.00 Save up to 52% |
| Quantity Discount |
| QTY |
Price |
| 1-5 |
$452.95 ea. |
| 6+ |
$431.95 ea. |
|
|
|
|
|
 |
Product Information |
 |
|
 |
Product Q&A |
 |
|
|
 |
| Agricultural Motor: 5-7.5HP, 3450RPM, 184 Frame, Drip-Proof (DP), 208-230/460V, 3PH, AIROVER duty, Automatic thermal protection, 1.0 Service Factor, Rigid Mount. Open air over, fan-on-shaft design motors for crop drying applications. Designed for continuous duty operation. Class F insulation system. Thermostats provide thermal overload protection on all units. Extra nameplate included for remote mounting. Keyed shaft with 1/4- 20 UNC tapped hole in end. Capacitors supplied on single phase models. All models include sealed bearings, rodent screens, gray epoxy paint and 34" leads exiting the motor at 12 o'clock.
Click here to see our full selection of Motor Controls and Drives.
Click for Motor Outline and Dimensions Click for Motor External Wiring Diagram
| Compatibility | | AO Smith/Magnetek: R244 | | Baldor: UCM575 | UCME570 | | Marathon: Y302 |
|
| Product Specifications |
| HORSEPOWER |
5 - 7.5 |
| ENCLOSURE |
DP |
| FRAME |
184 |
| BRAND |
Leeson |
| MOUNTING |
Rigid |
| RPM |
3450 |
| PHASE |
3 |
| DESIGN |
Sq Cage Inductor Run |
| MATERIAL |
Rolled Steel |
| VOLTAGE |
208-230 / 460 |
| NAMEPLATE AMPS |
20.8-19/9.5 |
| HERTZ |
60 |
| DUTY |
Airover |
| SERVICE FACTOR |
1.0 |
| THERMAL PROTECTION |
Automatic |
| EFFICIENCY TYPE |
Standard |
| EFFICIENCY |
82.5 |
| AMBIENT TEMP C |
40 |
| SHAFT DIAMETER |
1-1/8 |
| SHAFT LENGTH INCHES |
2-1/4 |
| ROTATION |
REV |
| SHAFT END BEARING |
6206 |
| WEIGHT |
73 |
| UL |
Y |
| CSA |
Y |
| LEESON MODEL NO. |
C184T34DB8AA |
| UPC |
69172015446 |
| CATALOG NO. |
131849.00 |
|
|
|
|
 |
|
|
