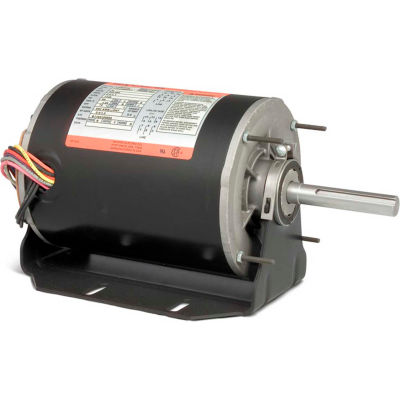

Baldor Motor CHM344A, .5 AIR OVERHP, 1725RPM, 3PH, 60HZ, 48Z, 1716M

Rollover image to zoom in

Click image to enlarge

See all 33 items in product family

Baldor Motor CHM344A, .5 AIR OVERHP, 1725RPM, 3PH, 60HZ, 48Z, 1716M

Item #: WBB387769

Sold By: globalindustrial.com

Usually ships in 2 to 5 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

List Price: $291.00 Save up to 16%
Qty Price
1-5
$260.95 ea.
6+ $244.95 ea.
Product Information
Product Q&A
Baldor Motor, .5 AIR OVERHP,1725RPM,3PH,60HZ,48Z,1716M

Features:
  • Automatic thermal overload
  • Ball bearings
  • Extended thru-bolts
  • Resilient cushion rings
  • Reversible rotation
  • Rugged steel frame
  • Suitable for mounting in any position
  • Terminal panel with quick connections on single phase
Typical Applications:
Air handling fans, Confinement houses, Exhaust fans, Unit heaters, and other applications having moderate starting loads

Documents are in PDF format

Product Specifications

    • HORSEPOWER0.5
    • ENCLOSURETEAO
    • FRAME48Z
    • BRANDBaldor
    • MOUNTINGResilient Base
    • MOTOR RPM 60Hz1725
    • RPM1725
    • PHASE3
    • VOLTAGE230/460
    • HERTZ60
    • SERVICE FACTOR1.25
    • AMBIENT TEMP C40
    • WEIGHT21
    • FL AMPS1.9/0.95
    • FL EFFICIENCY72
    • INSULATION-CLASSB
    • DESIGN CODEB
    • BALDOR CATALOG NUMBERCHM344A
    • POWER-FACTOR69
    • 208V AMPS2
    • KVA-CODEK
    • THERMAL-SELECTN
    • SERIAL-NUMBER--
    • SPEC. NUMBER17K042W380
    • POLES4
    • DRIVE END FLANGEStandard
    • SERVICE-FACTOR-AMPS2/1
    • C-DIMENSION INCHES11.46
