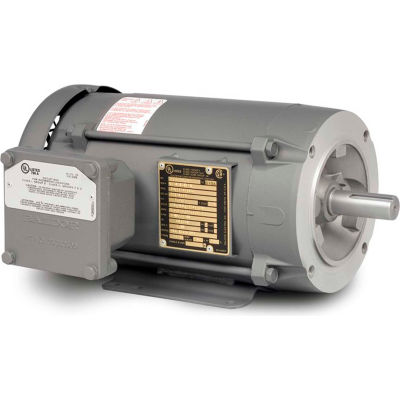

Baldor Motor CL5004A, .5HP, 1725RPM, 1PH, 60HZ, 56C, 3424L, XPFC, F1

Rollover image to zoom in

Click image to enlarge

See all 67 items in product family

Baldor Motor CL5004A, .5HP, 1725RPM, 1PH, 60HZ, 56C, 3424L, XPFC, F1

Item #: WBB388103

Sold By: globalindustrial.com

Usually ships in 2 to 5 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

List Price: $730.00 Save up to 33%
Qty Price
1-5
$518.00 ea.
6+ $486.95 ea.
Product Information
Product Q&A
Baldor Motor, .5HP,1725RPM,1PH,60HZ,56C,3424L,XPFC,F1

Features:
  • Corrosion resistant epoxy finish
  • Positively locked drive end bearing
  • U.L. approved cast conduit box-standard
  • 1.00 Service Factor
  • Class I, Group D, Class II, Group F & G, T3C
Typical Applications:
Pumps, blowers, valves, etc.

Documents are in PDF format

Product Specifications

    • HORSEPOWER0.5
    • ENCLOSUREXPFC
    • FRAME56C
    • BRANDBaldor
    • MOUNTINGRigid
    • MOTOR RPM 60Hz1725
    • RPM1725
    • PHASE1
    • VOLTAGE115/208-230
    • HERTZ60
    • SERVICE FACTOR1
    • AMBIENT TEMP C40
    • WEIGHT37
    • MANUFACTURERS PART NUMBERCL5004A
    • FL AMPS7.4/3.9-3.7
    • DOE-CODE--
    • SERIAL-NUMBER--
    • 208V AMPS3.9
    • C-DIMENSION INCHES14.22
    • NAMEPLATE-SERIAL-NUMBER--
    • TEMP. CODET3C
    • KVA-CODEJ
    • INSULATION CLASSB
    • SPEC. NUMBER34-5328W369
    • FL EFFICIENCY64
    • POLES4
    • DESIGN CODEN
    • DRIVE END FLANGEC-Face
    • POWER-FACTOR66
