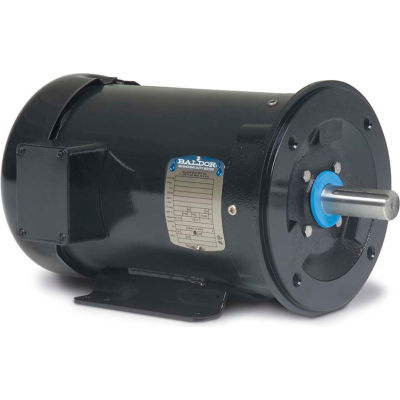

Baldor Explosion Proof Motor, EM7062T-I-5, 3PH, 40HP, 575V, 1775RPM, 324T

Item #: WBB909008

Sold By: globalindustrial.com

Usually ships in 5 to 8 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

Price: $6,045.00
Add to list
Product Information
Product Q&A
Baldor Explosion Proof Motor, EM7062T-I-5, 3PH, 40HP, 575V, 1775RPM, 324T

Baldor's Explosion-proof motors are ideal for a wide variety of applications where hazardous fumes or dust may be present. The motors are available in three phase and single phase with ratings, in stock, from 1/4 HP through 300 HP. Designs available include standard foot mounted, C face with base and C face less base, 60 Hz and 50 Hz, Jet Pump motors, and Inverter Drive motors.

Features
  • Labyrinth-type recessed metal shaft slinger for increased bearing protection
  • Explosion-proof breather
  • drain to prevent build up of condensation
  • Class F insulation
  • Corrision resistant finish with two part epoxy coating
  • UL and CSA approved for Class I, Group C & D, T3C
Application(s)
  • On and off shore drill rig service, bulk fuel terminals, and transfer stations. For use in high humidity hazardous-duty applications driving pumps, compressors, blowers, fans, and many other loads that require 1.15 service factor explosion-proof motors. Designed with features for use in the petroluem industry. Includes Class I, Group C & D approval for use in areas where hydrogen sulfide is present.

Documents are in PDF format

Product Specifications

  • HORSEPOWER40
  • FRAME324T
  • BRANDBaldor
  • RPM1775
  • PHASE3
  • VOLTAGE575
  • HERTZ60
  • DUTYContinuous
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • MANUFACTURERS PART NUMBEREM7062T-I-5
  • POWER-FACTOR82
  • KVA-CODEH
  • FL EFFICIENCY94.1
  • XP CLS/GRP4
  • FRONT-BEARING6311
  • FL AMPS39
  • C-DIMENSION INCHES32
  • SPECIFICATION NUMBER12S077Y276G1
  • INSULATION CLASSF
  • DESIGN CODEB
  • PULLEY-BEARING6312
  • TYPEExplossion Proof Motor
