Baldor Motor PL1327M, 5HP, 3450RPM, 1PH, 60HZ, 56/56H, 3535LC, ODTF
Remove

      Items
Baldor Motor PL1327M, 5HP, 3450RPM, 1PH, 60HZ, 56/56H, 3535LC, ODTF Baldor Motor PL1327M, 5HP, 3450RPM, 1PH, 60HZ, 56/56H, 3535LC, ODTF


Home   >  Motors & Power Transmission   >  Electric Motors-Definite Purpose   >  Pressure Washer Motors   >  Baldor Pressure Washer Motors   >  Baldor Motor PL1327M, 5HP, 3450RPM, 1PH, 60HZ, 56/56H, 3535LC, ODTF
Baldor Motor PL1327M, 5HP, 3450RPM, 1PH, 60HZ, 56/56H, 3535LC, ODTF
Email This Page Printer Friendly Version

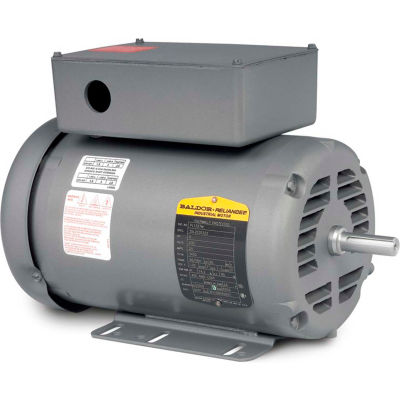

Baldor Motor PL1327M, 5HP, 3450RPM, 1PH, 60HZ, 56/56H, 3535LC, ODTF
Sold by: globalindustrial.com
Availability:  Usually ships in 1 to 4 days
Stock No: WBB390956
List Price $721.00    Save up to 38%
Quantity Discount
QTY Price
1-5 $469.95 ea.
6+ $447.95 ea.

Chat with a Salesperson Add this item to your list
Qty:   ADD TO CART

Product Information
Product Q&A
 Write a review for this product. Write A Review
Baldor Motor, 5HP,3450RPM,1PH,60HZ,56/56H,3535LC,ODTF

Features:
  • Ball bearing design
  • 1 1/2 horsepower ratings are rated at 14 amps or less on 115 volts
  • Manual thermal overload located in the conduit box
  • UL and CSA recognized component approval
  • 200°C copper windings.
Typical Applications:
Pressure washers, steam cleaners, portable and self contained stationary system for direct drive mount and coupled mount designs.

Click here to see our full selection of Motor Controls and Drives.

Click for Motor Specs and Diagrams
Product Specifications
HORSEPOWER 5
ENCLOSURE ODTF
FRAME 56/56H
BRAND Baldor
MOUNTING RIGID
RPM 3450
PHASE 1
VOLTAGE 230
HERTZ 60
SERVICE FACTOR 1
AMBIENT TEMP C 40
OPPOSITE END BEARING 6203
WEIGHT 56
POLES 2
C-DIMENSION INCHES 13.81
DRIVE END FLANGE Standard
BALDOR CATALOG NUMBER PL1327M
