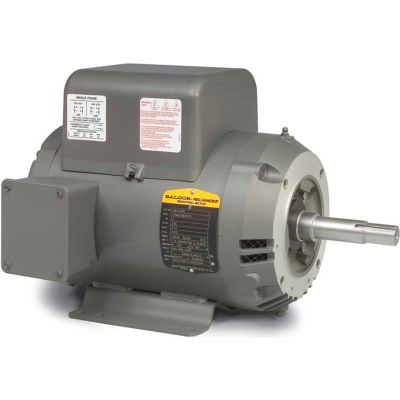

Baldor Motor JML1510T, 7.5HP, 1725RPM, 1PH, 60HZ, 215JM, 3744LC, OPEN

Rollover image to zoom in

Click image to enlarge

See all 74 items in product family

Baldor Motor JML1510T, 7.5HP, 1725RPM, 1PH, 60HZ, 215JM, 3744LC, OPEN

Item #: WBB389053

Sold By: globalindustrial.com

Usually ships in 2 to 5 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

List Price: $1,865.00 Save up to 40%
Qty Price
1-2
$1,193.00 ea.
3+ $1,124.00 ea.
Product Information
Product Q&A
Baldor Motor, 7.5HP,1725RPM,1PH,60HZ,215JM,3744LC,OPEN

Features:
  • Heavy gauge steel frame construction
  • Corrosion resistant finish
  • Ball bearings
  • Suitable for mounting in any position
Typical Applications:
Many pumping systems where only single phase power is available.

Documents are in PDF format

Product Specifications

    • HORSEPOWER7.5
    • ENCLOSUREOPEN
    • FRAME215JM
    • BRANDBaldor
    • MOUNTINGRigid
    • MOTOR RPM 60Hz1725
    • RPM1725
    • PHASE1
    • VOLTAGE230
    • HERTZ60
    • SERVICE FACTOR1.15
    • AMBIENT TEMP C40
    • OPPOSITE END BEARING6206
    • WEIGHT137
    • MANUFACTURERS PART NUMBERJML1510T
    • is_motorYes
    • POLES4
    • C-DIMENSION INCHES19.31
    • BEARING-DRIVE-END6309
    • FL EFFICIENCY85.5
    • FL AMPS31
    • DOE-CODE--
    • DESIGN CODEL
    • KVA-CODEG
    • INSULATION CLASSB
    • SPEC. NUMBER37K266W885G1
    • POWER-FACTOR89
    • SERIAL-NUMBER--
    • 208V AMPS33
    • DRIVE END FLANGEC-Face
