Baldor Motor JSM3155, 2HP, 3450RPM, 3PH, 60HZ, 56YZ, 3430M, OPEN, F1 |
| |
|
 |
|
|
|
 |
|
|
|
Baldor Motor JSM3155, 2HP, 3450RPM, 3PH, 60HZ, 56YZ, 3430M, OPEN, F1
|
|
Sold by: globalindustrial.com
|
Availability:  Usually ships in 1 to 4 days
Stock No: WBB388971
|
|
|
| List Price $551.00 Save up to 38% |
| Quantity Discount |
| QTY |
Price |
| 1-5 |
$359.95 ea. |
| 6+ |
$343.95 ea. |
|
|
|
|
|
 |
Product Information |
 |
|
 |
Product Q&A |
 |
|
|
 |

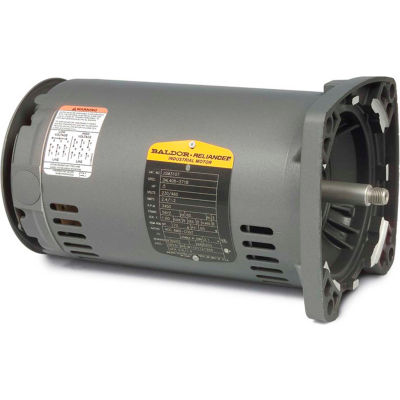

Baldor Motor, 2HP,3450RPM,3PH,60HZ,56YZ,3430M,OPEN,F1
Features:- Ball bearings
- Stainless steel shaft extension
Typical Applications:
Square Flange pumps, and swimming pool pumps, etc.
Click here to see our full selection of Motor Controls and Drives.
Click for Motor Specs and Diagrams |
| Product Specifications |
| HORSEPOWER |
2 |
| ENCLOSURE |
OPEN |
| FRAME |
56YZ |
| BRAND |
Baldor |
| MOUNTING |
NO MOUNTING |
| RPM |
3450 |
| PHASE |
3 |
| VOLTAGE |
230/460 |
| HERTZ |
60 |
| SERVICE FACTOR |
1.2 |
| AMBIENT TEMP C |
40 |
| OPPOSITE END BEARING |
6203 |
| WEIGHT |
34 |
| INSULATION-CLASS |
B |
| KVA-CODE |
L |
| POWER-FACTOR |
86 |
| SERIAL-NUMBER |
-- |
| SPEC. NUMBER |
34L408X636 |
| BALDOR CATALOG NUMBER |
JSM3155 |
| BEARING-DRIVE-END |
6203 |
| DESIGN CODE |
B |
| DOE-CODE |
-- |
| FL AMPS |
5.4/2.7 |
| POLES |
2 |
| C-DIMENSION INCHES |
13.4 |
| DRIVE END FLANGE |
POOL PUMP |
| 208V AMPS |
6.4 |
| FL EFFICIENCY |
82.5 |
|
|
|
|
|
|
