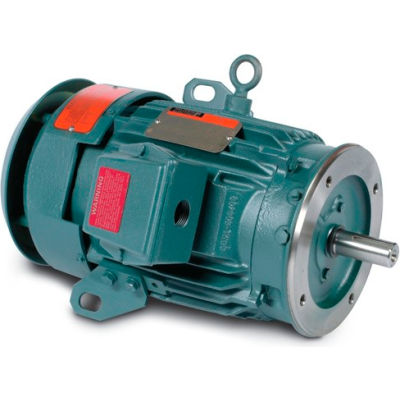

Baldor Motor CECP2334T-4, 20HP, 1765RPM, 3PH, 60HZ, 256TC, 0952M, TEFC, F

Rollover image to zoom in

Click image to enlarge

See all 167 items in product family

Baldor Motor CECP2334T-4, 20HP, 1765RPM, 3PH, 60HZ, 256TC, 0952M, TEFC, F

Item #: WBB388903

Sold By: globalindustrial.com

Usually ships in 2 to 5 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

List Price: $3,125.00 Save up to 33%
Qty Price
1-5
$2,216.00 ea.
6+ $2,083.00 ea.
Product Information
Product Q&A
Baldor Motor, 20HP,1765RPM,3PH,60HZ,256TC,0952M,TEFC,F

Features:
  • Super-E premium efficient motor
  • 1.15 Service Factor
  • Corrosion resistant epoxy finish
  • Regreasable ball bearings
  • Oversized rotatable cast iron conduit box
  • Forsheda® shaft seal
  • Moisture resistant copper windings
  • Class F insulation
  • Stainless steel nameplate and corrosion resistant hardware
  • Tropicalized
Typical Applications:
Typical applications include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operationg conditions.

Documents are in PDF format

Product Specifications

    • HORSEPOWER20
    • ENCLOSURETEFC
    • FRAME256TC
    • BRANDBaldor
    • MOUNTINGRigid
    • MOTOR RPM 60Hz1765
    • RPM1765
    • PHASE3
    • VOLTAGE460
    • HERTZ60
    • SERVICE FACTOR1.15
    • AMBIENT TEMP C40
    • OPPOSITE END BEARING6309
    • WEIGHT345
    • MANUFACTURERS PART NUMBERCECP2334T-4
    • POWER-FACTOR84
    • INSULATION CLASSF
    • FL EFFICIENCY93
    • SERIAL-NUMBER--
    • SPEC. NUMBER09H180Y639
    • C-DIMENSION INCHES25.19
    • 208V AMPS--
    • DRIVE END FLANGEC-Face
    • KVA-CODEH
    • DESIGN CODEB
    • DOE-CODE010A
    • FL AMPS24
    • POLES4
    • BEARING-DRIVE-END6309
