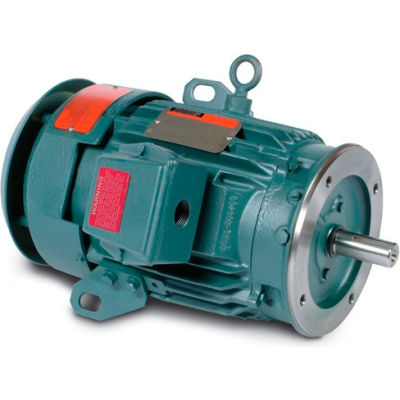

Baldor Motor CECP3663T, 5HP, 3505RPM, 3PH, 60HZ, 184TC, TEFC, FOOT

Rollover image to zoom in

Click image to enlarge

See all 111 items in product family

Baldor Motor CECP3663T, 5HP, 3505RPM, 3PH, 60HZ, 184TC, TEFC, FOOT

Item #: WBB388611

Sold By: globalindustrial.com

Usually ships in 2 to 5 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

List Price: $1,537.00 Save up to 33%
Price: $ 1031.00
Product Information
Product Q&A
Baldor Motor, 5HP,3505RPM,3PH,60HZ,184TC,TEFC,FOOT,

Features:
  • Super-E premium efficient motor
  • 1.15 Service Factor
  • Corrosion resistant epoxy finish
  • Regreasable ball bearings
  • Oversized rotatable cast iron conduit box
  • Forsheda® shaft seal
  • Moisture resistant copper windings
  • Class F insulation
  • Stainless steel nameplate and corrosion resistant hardware
  • Tropicalized
Typical Applications:
Typical applications include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operationg conditions.

Documents are in PDF format

Product Specifications

    • HORSEPOWER5
    • ENCLOSURETEFC
    • FRAME184TC
    • BRANDBaldor
    • MOUNTINGRigid
    • MOTOR RPM 60Hz3490
    • RPM3490
    • PHASE3
    • VOLTAGE230/460
    • HERTZ60
    • SERVICE FACTOR1.15
    • AMBIENT TEMP C40
    • OPPOSITE END BEARING6206
    • WEIGHT142
    • MANUFACTURERS PART NUMBERCECP3663T
    • KVA-CODEM
    • DESIGN CODEA
    • DOE-CODE010A
    • FL AMPS11.4/5.7
    • BEARING-DRIVE-END6206
    • POLES2
    • DRIVE END FLANGEC-Face
    • C-DIMENSION INCHES16.38
    • FL EFFICIENCY90.2
    • INSULATION CLASSF
    • POWER-FACTOR90
    • SERIAL-NUMBER--
    • 208V AMPS12.5
    • SPEC. NUMBER06H482W730G3
