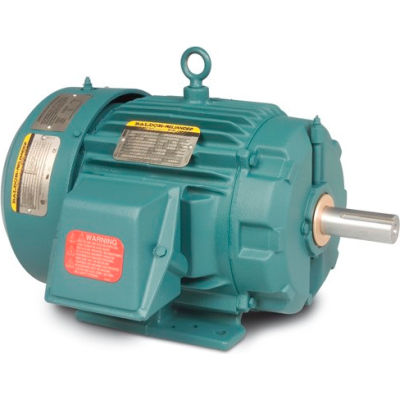

Baldor Motor ECP64110TR-4, 40HP, 1775RPM, 3PH, 60HZ, 324T, 1260M, TEFC, W6 |
| |
|
 |
|
|
|
 |
|
|
|
Baldor Motor ECP64110TR-4, 40HP, 1775RPM, 3PH, 60HZ, 324T, 1260M, TEFC, W6
|
|
Sold by: globalindustrial.com
|
Availability:  Usually ships in 1 to 4 days
Stock No: WBB390174
|
|
|
| List Price $6,347.00 Save up to 38% |
| Quantity Discount |
| QTY |
Price |
| 1-5 |
$4,128.00 ea. |
| 6+ |
$3,934.00 ea. |
|
|
|
|
|
 |
Product Information |
 |
|
 |
Product Q&A |
 |
|
|
 |
Baldor Motor, 40HP,1775RPM,3PH,60HZ,324T,1260M,TEFC,W6
Features:- NEMA premium efficiency
- Motors meet IEEE 841 specifications for the chemical industry and incorporate roller bearings on 210 frames and larger for heavy belt loads
- VBX / VBXX Inpro bearing isolators on both ends
- Shaft up requires removing plug in upper end and reversing drain
- Motors have RTV sealed end bracket-to-frame fits and epoxy coated rotor and stator
- Motors are inverter ready
- 5-year warranty
Typical Applications:
Petroleum, chemical and other industries with belt driven heat exchangers requiring premium efficient motors designed to API 661 standards of 40,000 hours bearing life.
Click here to see our full selection of Motor Controls and Drives.
Click for Motor Specs and Diagrams |
| Product Specifications |
| HORSEPOWER |
40 |
| ENCLOSURE |
TEFC |
| FRAME |
324T |
| BRAND |
Baldor |
| MOUNTING |
RIGID |
| RPM |
1775 |
| PHASE |
3 |
| VOLTAGE |
460 |
| HERTZ |
60 |
| SERVICE FACTOR |
1.15 |
| AMBIENT TEMP C |
40 |
| OPPOSITE END BEARING |
6312 |
| WEIGHT |
600 |
| CUSTOMER-PART-NUMBER |
-- |
| EFFICIENCY-2 |
93.6 |
| GREASE |
MOBILITH SHC220 |
| MAX. KVAR |
7.6 |
| MOTOR-WEIGHT |
592 |
| # OF STATOR SLOTS |
48 |
| MAX. SPACE HEATER TEMP. |
-- |
| SPACE-HEATER-AMPS |
-- |
| SPACE-HEATER-VOLTS |
-- |
| C-DIMENSION INCHES |
30.53 |
| DRIVE END FLANGE |
Standard |
| # OF ROTOR BARS |
40 |
| POLES |
4 |
| FL AMPS |
46 |
| DOE-CODE |
010A |
| DESIGN CODE |
B |
| BEARING-DRIVE-END |
NU312 |
| BALDOR CATALOG NUMBER |
ECP64110TR-4 |
| SPEC. NUMBER |
12F753X730G1 |
| SERIAL-NUMBER |
-- |
| POWER-FACTOR |
87 |
| KVA-CODE |
F |
| INSULATION-CLASS |
F |
| FL EFFICIENCY |
94.5 |
| TEMP. CODE |
T3 |
|
|
|
|
 |
|
|
