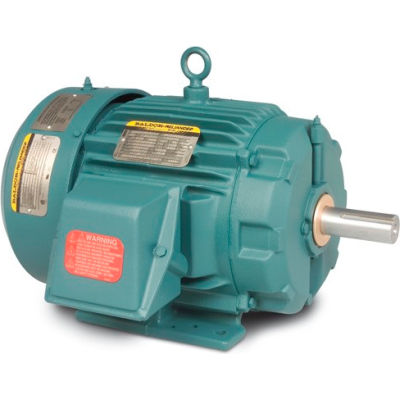

Baldor Motor ECP84100T-5, 15HP, 1180RPM, 3PH, 60HZ, 284T, TEFC, FOOT

Item #: WBB390360

Sold By: globalindustrial.com

Usually ships in 2 to 5 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

List Price: $4,155.00 Save up to 38%
qty Price
1-5 $2,703.00 ea.
6+ $2,576.00 ea.
Add to list
Product Information
Product Q&A
Baldor Motor, 15HP,1180RPM,3PH,60HZ,284T,TEFC,FOOT,

Features:
  • Built to 841XL design
  • Upgraded electrical and mechanical design with NEMA Premium® efficient winding
  • Inpro/Seal® VBX (thru 210 frame)
  • VBXX bearing isolators on fan and drive end shaft extensions
  • Epoxy paint provides IP56 enclosure
  • Stainless breather drains
  • Proprietary cast iron frames for reduced vibration and noise
  • Terminal lugs on motor leads
  • 5-year warranty
Typical Applications:
Petro-chemical, pulp and paper, cement, aggregate mining and other process industries requiring premium efficient motors designed, manufactured and tested to exceed IEEE 841-2001 TEFC motor standards for extreme severe duty service.

Documents are in PDF format

Product Specifications

  • HORSEPOWER15
  • ENCLOSURETEFC
  • FRAME284T
  • BRANDBaldor
  • MOUNTINGFoot Mounted
  • RPM1180
  • PHASE3
  • VOLTAGE575
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • OPPOSITE END BEARING6311
  • WEIGHT445
  • MAX. KVAR6
  • MOTOR-WEIGHT420
  • # OF STATOR SLOTS54
  • MAX. SPACE HEATER TEMP.--
  • SPACE-HEATER-AMPS--
  • SPACE-HEATER-VOLTS--
  • C-DIMENSION INCHES27.44
  • DRIVE END FLANGEStandard
  • POLES6
  • FL AMPS15.6
  • # OF ROTOR BARS42
  • GREASEPOLYREX EM
  • EFFICIENCY-291
  • CUSTOMER-PART-NUMBER--
  • DOE-CODE--
  • DESIGN CODEB
  • BEARING-DRIVE-END6311
  • TEMP. CODET3
  • SPEC. NUMBER10G187Y755G1
  • SERIAL-NUMBER--
  • POWER-FACTOR77
  • KVA-CODEH
  • INSULATION-CLASSF
  • FL EFFICIENCY92.4
  • BALDOR CATALOG NUMBERECP84100T-5
