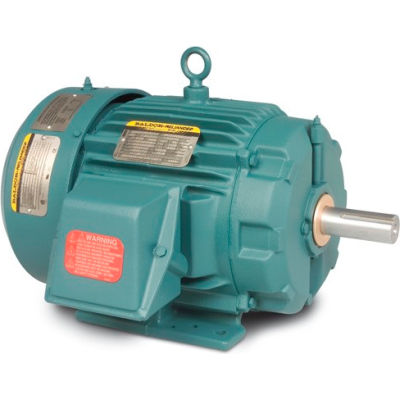

Actual product may differ from image shown

Baldor Motor VENCP83580T-4, 1HP, 3450RPM, 3PH, 60HZ, 143TC, 0520M, TENV, F1

Rollover image to zoom in

Click image to enlarge

See all 111 items in product family

Baldor Motor VENCP83580T-4, 1HP, 3450RPM, 3PH, 60HZ, 143TC, 0520M, TENV, F1

Item #: WBB391016

Sold By: globalindustrial.com

Usually ships in 2 to 5 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

List Price: $868.00 Save up to 33%
Qty Price
1-5 $616.00 ea.
6+ $579.00 ea.
Product Information
Product Q&A
Baldor Motor, 1HP,3450RPM,3PH,60HZ,143TC,0520M,TENV,F1

Features:
  • Super-E® Premium efficient windings
  • 460 Volt
  • 1.15 Service Factor
  • Corrosion resistant epoxy finish
  • Regreasable ball bearings
  • Oversized rotatable cast iron conduit box
  • Forsheda® shaft seal
  • Moisture resistant ISR® (Inverter Spike Resistant®) copper windings
  • Class F insulation
  • Stainless steel nameplate and corrosion resistant hardware
  • Tropicalized
  • 5 year warranty
Typical Applications:
Typical applications include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operating conditions.

Documents are in PDF format

Product Specifications

    • HORSEPOWER1
    • ENCLOSURETENV
    • FRAME143TC
    • BRANDBaldor
    • MOUNTINGNO MOUNTING
    • MOTOR RPM 60Hz3450
    • RPM3450
    • PHASE3
    • VOLTAGE460
    • HERTZ60
    • SERVICE FACTOR1.15
    • AMBIENT TEMP C40
    • OPPOSITE END BEARING6205
    • WEIGHT56
    • MANUFACTURERS PART NUMBERVENCP83580T-4
    • C-DIMENSION INCHES12
    • DRIVE END FLANGEC-Face
    • POLES2
    • SERIAL-NUMBER--
    • DOE-CODE--
    • MAX. SPACE HEATER TEMP.N/A
    • SPACE-HEATER-AMPSN/A
    • SPACE-HEATER-VOLTSN/A
    • # OF ROTOR BARS20
    • FL AMPS1.3
    • GREASEPOLYREX EM
    • DESIGN CODEB
    • KVA-CODEL
    • BEARING-DRIVE-END6205
    • TEMP. CODET3
    • POWER-FACTOR88
    • SPEC. NUMBER05F158W634G1
    • INSULATION CLASSF
    • FL EFFICIENCY84
    • MAX. KVAR0.05
    • MOTOR-WEIGHT56 LBS
    • # OF STATOR SLOTS--
