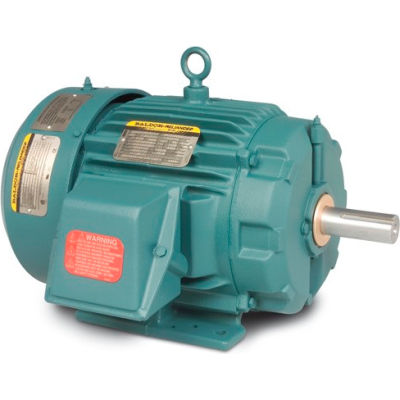

Actual product may differ from image shown

Baldor Motor VENCP83581T-4, 1HP, 1765RPM, 3PH, 60HZ, 143TC, 0524M, TENV, F1

Rollover image to zoom in

Click image to enlarge

See all 111 items in product family

Baldor Motor VENCP83581T-4, 1HP, 1765RPM, 3PH, 60HZ, 143TC, 0524M, TENV, F1

Item #: WBB391017

Sold By: globalindustrial.com

Usually ships in 2 to 5 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

List Price: $937.00 Save up to 33%
Qty Price
1-5
$665.00 ea.
6+ $625.00 ea.
Product Information
Product Q&A
Baldor Motor, 1HP,1765RPM,3PH,60HZ,143TC,0524M,TENV,F1

Features:
  • Super-E® Premium efficient windings
  • 460 Volt
  • 1.15 Service Factor
  • Corrosion resistant epoxy finish
  • Regreasable ball bearings
  • Oversized rotatable cast iron conduit box
  • Forsheda® shaft seal
  • Moisture resistant ISR® (Inverter Spike Resistant®) copper windings
  • Class F insulation
  • Stainless steel nameplate and corrosion resistant hardware
  • Tropicalized
  • 5 year warranty
Typical Applications:
Typical applications include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operating conditions.

Documents are in PDF format

Product Specifications

    • HORSEPOWER1
    • ENCLOSURETENV
    • FRAME143TC
    • BRANDBaldor
    • MOUNTINGNO MOUNTING
    • MOTOR RPM 60Hz1765
    • RPM1765
    • PHASE3
    • VOLTAGE460
    • HERTZ60
    • SERVICE FACTOR1.15
    • AMBIENT TEMP C40
    • OPPOSITE END BEARING6205
    • WEIGHT62
    • MANUFACTURERS PART NUMBERVENCP83581T-4
    • FL EFFICIENCY87.5
    • # OF STATOR SLOTS--
    • MAX. KVAR0.46
    • MOTOR-WEIGHT58 LBS
    • C-DIMENSION INCHES12
    • DRIVE END FLANGEC-Face
    • INSULATION CLASSF
    • POWER-FACTOR70
    • POLES4
    • SPEC. NUMBER05F158W751G1
    • TEMP. CODET3
    • BEARING-DRIVE-END6205
    • KVA-CODEN
    • DESIGN CODEB
    • GREASEPOLYREX EM
    • FL AMPS1.5
    • # OF ROTOR BARS28
    • SPACE-HEATER-VOLTSN/A
    • SPACE-HEATER-AMPSN/A
    • MAX. SPACE HEATER TEMP.N/A
    • DOE-CODE--
    • SERIAL-NUMBER--
