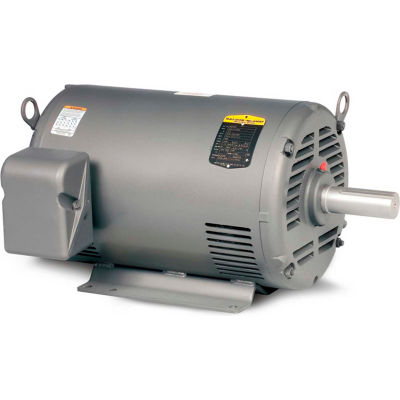

Baldor Motor M1005T, 1.5/.38HP, 1725/850RPM, 3PH, 60HZ, 145T, 3524

Baldor Motor M1005T, 1.5/.38HP, 1725/850RPM, 3PH, 60HZ, 145T, 3524

Sold by: globalindustrial.com

Availability:

Usually ships in 1 to 4 days
Stock No: WBB389655

List Price $696.00 Save up to 38%

Quantity Discount

QTY	Price
1-5	$453.95 ea.
6+	$432.95 ea.

Qty:

Product Information

Product Q&A


Write a review for this product.

Baldor Motor, 1.5/.38HP,1725/850RPM,3PH,60HZ,145T,3524

Features:

Lifting eye bolt mounted at top center 215T frame and larger for easy handling
Copper windings
Dynamically balanced rotors.

Typical Applications:
Fans, blowers, and pumps.

Click here to see our full selection of Motor Controls and Drives.

Click for Motor Specs and Diagrams

Product Specifications

HORSEPOWER	1.5/.38
ENCLOSURE	OPEN
FRAME	145T
BRAND	Baldor
MOUNTING	RIGID
RPM	1725/850
PHASE	3
VOLTAGE	208-230
HERTZ	60
SERVICE FACTOR	1.15
AMBIENT TEMP C	40
OPPOSITE END BEARING	6203
WEIGHT	35
DESIGN CODE	B
BEARING-DRIVE-END	6205
BALDOR CATALOG NUMBER	M1005T
SPEC. NUMBER	35BB001X011
SERIAL-NUMBER	--
POWER-FACTOR	--
KVA-CODE	F
INSULATION-CLASS	B
FL EFFICIENCY	--
208V AMPS	--
DRIVE END FLANGE	Standard
DOE-CODE	--
C-DIMENSION INCHES	12.13
POLES	4; 8
FL AMPS	4.4/1.8
