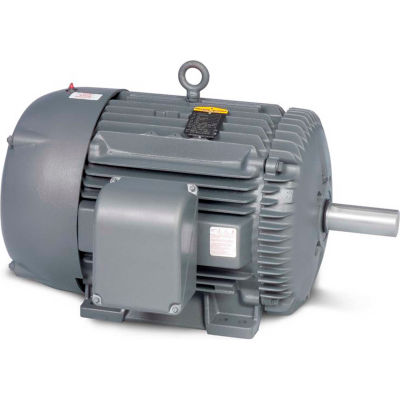

Baldor Motor M1556T, 2/.5HP, 1725/850RPM, 3PH, 60HZ, 145T, 3528M, T |
| |
|
 |
|
|
|
 |
|
|
|
Baldor Motor M1556T, 2/.5HP, 1725/850RPM, 3PH, 60HZ, 145T, 3528M, T
|
|
Sold by: globalindustrial.com
|
Availability:  Usually ships in 1 to 4 days
Stock No: WBB389780
|
|
|
| List Price $849.00 Save up to 38% |
| Quantity Discount |
| QTY |
Price |
| 1-5 |
$553.00 ea. |
| 6+ |
$528.00 ea. |
|
|
|
|
|
 |
Product Information |
 |
|
 |
Product Q&A |
 |
|
|
 |
Baldor Motor, 2/.5HP,1725/850RPM,3PH,60HZ,145T,3528M,T
Features:- Lifting eye bold mounted at top center 215T frame and larger for easy handling
- Copper windings
- Dynamically balanced rotors
Typical Applications:
Fans, blowers, machine tools, hoists, conveyors, pumps.
Click here to see our full selection of Motor Controls and Drives.
Click for Motor Specs and Diagrams |
| Product Specifications |
| HORSEPOWER |
2/.5 |
| ENCLOSURE |
TEFC |
| FRAME |
145T |
| BRAND |
Baldor |
| MOUNTING |
RIGID |
| RPM |
1725/850 |
| PHASE |
3 |
| VOLTAGE |
208-230 |
| HERTZ |
60 |
| SERVICE FACTOR |
1.15 |
| AMBIENT TEMP C |
40 |
| OPPOSITE END BEARING |
6203 |
| WEIGHT |
42 |
| POWER-FACTOR |
-- |
| KVA-CODE |
K |
| INSULATION-CLASS |
B |
| FL EFFICIENCY |
-- |
| 208V AMPS |
-- |
| DRIVE END FLANGE |
Standard |
| SERIAL-NUMBER |
-- |
| SPEC. NUMBER |
35AA001X475G1 |
| BALDOR CATALOG NUMBER |
M1556T |
| BEARING-DRIVE-END |
6205 |
| DESIGN CODE |
B |
| DOE-CODE |
-- |
| C-DIMENSION INCHES |
13.31 |
| POLES |
4; 8 |
| FL AMPS |
6.1/2.6 |
|
|
|
|
|
|
