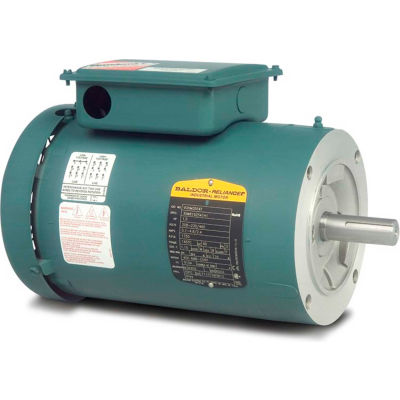

Baldor Motor VUHM3538-5, .5HP, 1750RPM, 3PH, 60HZ, 56C, 3516M, TEFC, F3 |
| |
|
|
|
|
|
 |
|
|
|
Baldor Motor VUHM3538-5, .5HP, 1750RPM, 3PH, 60HZ, 56C, 3516M, TEFC, F3
|
|
Sold by: globalindustrial.com
|
Availability:  Usually ships in 1 to 4 days
Stock No: WBB391891
|
|
|
| List Price $365.00 Save up to 38% |
| Quantity Discount |
| QTY |
Price |
| 1-5 |
$237.95 ea. |
| 6+ |
$226.95 ea. |
|
|
|
|
|
 |
Product Information |
 |
|
 |
Product Q&A |
 |
|
|
 |
Baldor Motor, .5HP,1750RPM,3PH,60HZ,56C,3516M,TEFC,F3
Features:- UL/CSA recognized and CE certified
- CEUHM/VEUHM motors are Super-E® with NEMA Premium® efficiency
- CUHM/VUHM motors are EPAct efficiency and all are inverter-ready
- 143-145TY and 143-145TYC frame motors have a special base with 56, 143 and 145 slots used on OEM conveyors
- 56-140 frames have low profile F3 top-mounted conduit box
- 3 year warranty on Super-E® motors
Typical Applications:
Unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.
Click here to see our full selection of Motor Controls and Drives.
Click for Motor Specs and Diagrams |
| Product Specifications |
| HORSEPOWER |
0.5 |
| ENCLOSURE |
TEFC |
| FRAME |
56C |
| BRAND |
Baldor |
| MOUNTING |
NO MOUNTING |
| RPM |
1735 |
| PHASE |
3 |
| VOLTAGE |
575 |
| HERTZ |
60 |
| SERVICE FACTOR |
1.15 |
| AMBIENT TEMP C |
40 |
| OPPOSITE END BEARING |
6203 |
| WEIGHT |
35 |
| POWER-FACTOR |
74 |
| KVA-CODE |
K |
| INSULATION-CLASS |
F |
| FL EFFICIENCY |
82.5 |
| 208V AMPS |
-- |
| POLES |
4 |
| SERIAL-NUMBER |
-- |
| C-DIMENSION INCHES |
13.23 |
| DRIVE END FLANGE |
C-Face |
| FL AMPS |
0.6 |
| SPEC. NUMBER |
35X042M282G1 |
| BALDOR CATALOG NUMBER |
VUHM3538-5 |
| DOE-CODE |
-- |
| DESIGN CODE |
B |
| BEARING-DRIVE-END |
6205 |
|
|
|
|
 |
|
|
