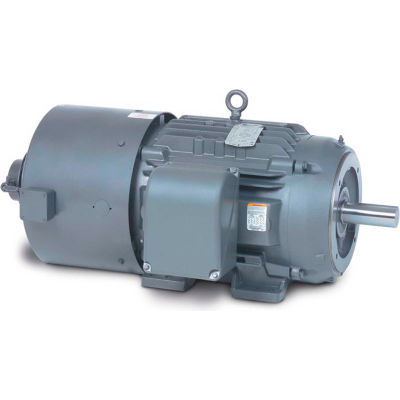

Baldor Motor IDM3768T, 5HP, 1160RPM, 3PH, 60HZ, 215TC, 0740M, TEBC, F1 |
| |
|
 |
|
|
|
 |
|
|
|
Baldor Motor IDM3768T, 5HP, 1160RPM, 3PH, 60HZ, 215TC, 0740M, TEBC, F1
|
|
Sold by: globalindustrial.com
|
Availability:  Usually ships in 1 to 4 days
Stock No: WBB389041
|
|
|
| List Price $3,326.00 Save up to 38% |
| Quantity Discount |
| QTY |
Price |
| 1-5 |
$2,163.00 ea. |
| 6+ |
$2,062.00 ea. |
|
|
|
|
|
 |
Product Information |
 |
|
 |
Product Q&A |
 |
|
|
 |
Baldor Motor, 5HP,1160RPM,3PH,60HZ,215TC,0740M,TEBC,F1
Features:- Motors include provisions for encoder feedback mounting when used with closed loop velocity or position motor controls
- Meets NEMA MG 1, Part 31
Typical Applications:
Conveyors, pumps, fans, metal processing, compressors, test stands, and material handling equipment. Designed for inverter or vector applications where up to a 1000:1 constant torque speed range is required.
Click here to see our full selection of Motor Controls and Drives.
Click for Motor Specs and Diagrams |
| Product Specifications |
| HORSEPOWER |
5 TE |
| ENCLOSURE |
TEBC |
| FRAME |
215TC |
| BRAND |
Baldor |
| MOUNTING |
RIGID |
| RPM |
1160 |
| PHASE |
3 |
| VOLTAGE |
230/460 |
| HERTZ |
60 |
| SERVICE FACTOR |
1 |
| AMBIENT TEMP C |
40 |
| OPPOSITE END BEARING |
6206 |
| WEIGHT |
200 |
| POLES |
6 |
| ROTOR-INERTIA |
1.19 |
| SLIP-HERTZ |
2 |
| C-DIMENSION INCHES |
29.14 |
| DRIVE END FLANGE |
C-Face |
| FL EFFICIENCY |
90.2 |
| MAXIMUM-RPM |
2000 |
| MAGNETIZING-CURRENT |
7.4/3.7 |
| BLOWER-VOLTS |
460 |
| FL AMPS |
14.6/7.3 |
| DOE-CODE |
-- |
| DESIGN CODE |
A |
| BEARING-DRIVE-END |
6307 |
| BALDOR CATALOG NUMBER |
IDM3768T |
| BLOWER-PHASE |
3 |
| BLOWER-HERTZ |
60 |
| BLOWER-AMPS |
0.25 |
| INSULATION-CLASS |
H |
| SERIAL-NUMBER |
-- |
| SPEC. NUMBER |
07J137X823G1 |
|
|
|
|
 |
|
|
