Browse Electric Motors-Definite Purpose
(8,901 Items) |
|
 |
Baldor Motor CESWDM3714T, 10HP, 1770RPM, 3PH, 60HZ, 215TC, 3752M, TEFC, F |
| |
|
 |
|
|
|
 |
|
|
|
Baldor Motor CESWDM3714T, 10HP, 1770RPM, 3PH, 60HZ, 215TC, 3752M, TEFC, F
|
|
Sold by: globalindustrial.com
|
Availability:  Usually ships in 1 to 4 days
Stock No: WBB388654
|
|
|
| List Price $2,598.00 Save up to 38% |
| Quantity Discount |
| QTY |
Price |
| 1-5 |
$1,690.00 ea. |
| 6+ |
$1,611.00 ea. |
|
|
|
|
|
 |
Product Information |
 |
|
 |
Product Q&A |
 |
|
|
 |

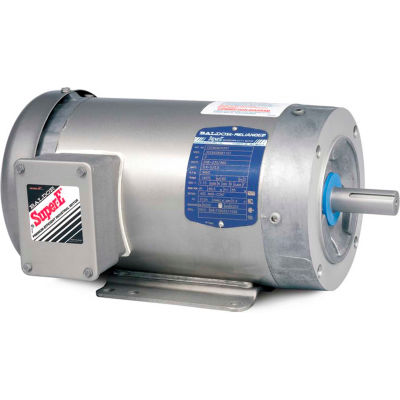

Baldor Motor, 10HP,1770RPM,3PH,60HZ,215TC,3752M,TEFC,F
Features:- Moisture resistant ISR® (Inverter Spike Resistant) 200°C magnet wire
- Sealed ball bearings with moisture resistant grease
- Contact lip seals on shaft extensions
- Neoprene gaskets
- Special processed cast endplates
- 300 Series stainless steel motor frame, base, shaft and hardware
- No exterior paint
- Tropicalized
Typical Applications:
Food processing, packaging and outdoor applications. Severe environments where motors are "washed" on a regular basis.
Click here to see our full selection of Motor Controls and Drives.
Click for Motor Specs and Diagrams |
| Product Specifications |
| HORSEPOWER |
10 |
| ENCLOSURE |
TEFC |
| FRAME |
215TC |
| BRAND |
Baldor |
| MOUNTING |
RIGID |
| RPM |
1770 |
| PHASE |
3 |
| VOLTAGE |
230/460 |
| HERTZ |
60 |
| SERVICE FACTOR |
1.15 |
| AMBIENT TEMP C |
40 |
| OPPOSITE END BEARING |
6206 |
| WEIGHT |
168 |
| C-DIMENSION INCHES |
21.31 |
| DRIVE END FLANGE |
C-Face |
| POLES |
4 |
| BALDOR CATALOG NUMBER |
CESWDM3714T |
| FL AMPS |
24/12 |
|
|
|
|
|
|
