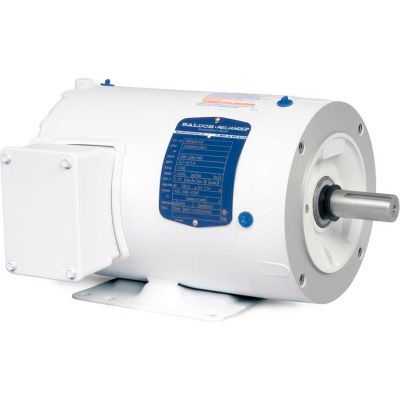

Baldor Motor CWDM3541, .75HP, 3450RPM, 3PH, 60HZ, 56C, 3518M, TENV, F1

Rollover image to zoom in

Click image to enlarge

See all 250 items in product family

Baldor Motor CWDM3541, .75HP, 3450RPM, 3PH, 60HZ, 56C, 3518M, TENV, F1

Item #: WBB388443

Sold By: globalindustrial.com

Usually ships in 2 to 5 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

List Price: $558.00 Save up to 33%
Qty Price
1-5
$395.95 ea.
6+ $371.95 ea.
Product Information
Product Q&A
Baldor Motor, .75HP,3450RPM,3PH,60HZ,56C,3518M,TENV,F1

Features:
  • Moisture sealant on bolt heads, between frame and endplates
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Stainless steel shaft
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized
Typical Applications:
Food processing and other applications where motor is regularly exposed to high pressure wash down.

Documents are in PDF format

Product Specifications

    • HORSEPOWER0.75
    • ENCLOSURETENV
    • FRAME56C
    • BRANDBaldor
    • MOUNTINGRigid
    • MOTOR RPM 60Hz3450
    • RPM3450
    • PHASE3
    • VOLTAGE230/460
    • HERTZ60
    • SERVICE FACTOR1.25
    • AMBIENT TEMP C40
    • WEIGHT35
    • MANUFACTURERS PART NUMBERCWDM3541
    • POLES2
    • DRIVE END FLANGEC-Face
    • C-DIMENSION INCHES11.07
    • BALDOR CATALOG NUMBERCWDM3541
    • OPPOSITE END BEARING SIZE6203
    • FL AMPS2.2/1.1
