Baldor Motor VSSWDM3538, .5HP, 1750RPM, 3PH, 60HZ, 56C, 3516M, TENV, F1 |
| |
|
 |
|
|
|
 |
|
|
|
Baldor Motor VSSWDM3538, .5HP, 1750RPM, 3PH, 60HZ, 56C, 3516M, TENV, F1
|
|
Sold by: globalindustrial.com
|
Availability:  Usually ships in 1 to 4 days
Stock No: WBB391908
|
|
|
| List Price $1,153.00 Save up to 38% |
| Quantity Discount |
| QTY |
Price |
| 1-5 |
$751.00 ea. |
| 6+ |
$716.00 ea. |
|
|
|
|
|
 |
Product Information |
 |
|
 |
Product Q&A |
 |
|
|
 |

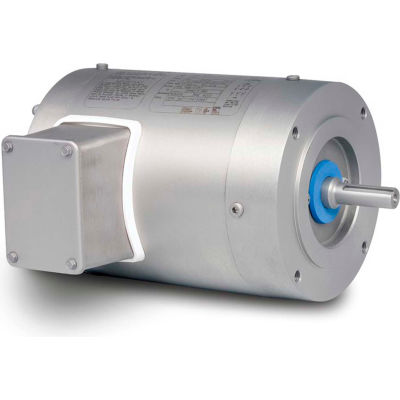

Baldor Motor, .5HP,1750RPM,3PH,60HZ,56C,3516M,TENV,F1
Features:- All external surfaces 300 series stainless steel: motor frame, endplates, conduit box, shaft, and base
- Moisture resistant 200°C ISR® (Inverter Spike Resistant) magnet wire
- Four condensate drains in each endplate
- Enplate rabbets sealed and conduit box gasketed
- Lip seals
- Especially effective in highly corrosive environments where paint or other finishes do not hold up.
Typical Applications:
Food processing, packaging, outdoor and highly corrosive environments.
Click here to see our full selection of Motor Controls and Drives.
Click for Motor Specs and Diagrams |
| Product Specifications |
| HORSEPOWER |
0.5 |
| ENCLOSURE |
TENV |
| FRAME |
56C |
| BRAND |
Baldor |
| MOUNTING |
NO MOUNTING |
| RPM |
1765 |
| PHASE |
3 |
| VOLTAGE |
230/460 |
| HERTZ |
60 |
| SERVICE FACTOR |
1.25 |
| AMBIENT TEMP C |
40 |
| OPPOSITE END BEARING |
6203 |
| WEIGHT |
37 |
| C-DIMENSION INCHES |
11.09 |
| POLES |
4 |
| FL AMPS |
1.8/.9 |
| BALDOR CATALOG NUMBER |
VSSWDM3538 |
| DRIVE END FLANGE |
C-Face |
|
|
|
|
 |
|
|
