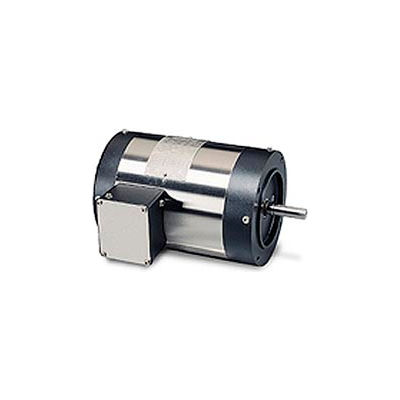

Leeson Washdown Motor-1.5/1HP, 208-230/460V, 1740/1440RPM, TEFC, ROUND, 84 Eff. |
| |
|
 |
|
|
|
 |
|
|
|
Leeson Washdown Motor-1.5/1HP, 208-230/460V, 1740/1440RPM, TEFC, ROUND, 84 Eff.
|
|
Sold by: globalindustrial.com
|
Availability:  Usually ships in 2 to 5 days
Stock No: WBB228049
|
|
|
| Quantity Discount |
| QTY |
Price |
| 1-5 |
$470.95 ea. |
| 6+ |
$449.95 ea. |
|
|
|
|
|
 |
Product Information |
 |
|
 |
Product Q&A |
 |
|
|
 |
| Washguard II Motor with Stainless Steel Frame: 1.5/1HP, 1740/1440 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 145 Frame, ROUND, 208-230/460V, 3PH, 60/50HZ, Name Plate Amps 4.5-4.4/2.2&3.8/1.9, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 84, Efficiency Type: Standard, Ambient 40 C, Reverse Rotation, Shaft Diameter: 7/8". Superior, extended life in severe environments - Paint-free exterior stainless frame and conduit box lid, specially processed endshields and conduit box housing
- Etched stainless steel nameplate
- Proven WASHGUARD mechanical and electrical features
- BISSC certified for baking industry
- Meets IP55 enclosure protection
- Three phase motors are suitable for use on VFDs
Click here to see our full selection of Motor Controls and Drives.
Click for Motor Outline and Dimensions Click for Motor External Wiring Diagram |
| Product Specifications |
| HORSEPOWER |
1.5 / 1 |
| ENCLOSURE |
TEFC |
| FRAME |
145 |
| BRAND |
Leeson |
| MOUNTING |
Round |
| RPM |
1740/1440 |
| PHASE |
3 |
| DESIGN |
Sq Cage Inductor Run |
| MATERIAL |
Rolled Steel |
| VOLTAGE |
208-230 / 460 |
| NAMEPLATE AMPS |
4.5-4.4/2.2&3.8/1.9 |
| HERTZ |
60/50 |
| DUTY |
Continuous |
| SERVICE FACTOR |
1.15 |
| THERMAL PROTECTION |
No |
| EFFICIENCY TYPE |
Standard |
| EFFICIENCY |
84 |
| AMBIENT TEMP C |
40 |
| SHAFT DIAMETER |
7/8 |
| ROTATION |
REV |
| SHAFT END BEARING |
6205 |
| WEIGHT |
43 |
| UL |
Y |
| CSA |
Y |
| LEESON MODEL NO. |
CZ145T17WC11CC |
| UPC |
69172001694 |
| CATALOG NO. |
G121350.00 |
|
|
|
|
 |
|
|
