Leeson Washdown Motor-5HP, 208-220/460V, 1750RPM, TEFC, RIGID C, 1.15 SF, 87.5 Eff. |
| |
|
 |
|
|
|
 |
|
|
|
Leeson Washdown Motor-5HP, 208-220/460V, 1750RPM, TEFC, RIGID C, 1.15 SF, 87.5 Eff.
|
|
Sold by: globalindustrial.com
|
Availability:  Usually ships in 2 to 5 days
Stock No: WBB228036
|
|
|
| Quantity Discount |
| QTY |
Price |
| 1-5 |
$874.00 ea. |
| 6+ |
$833.00 ea. |
|
|
|
|
|
 |
Product Information |
 |
|
 |
Product Q&A |
 |
|
|
 |

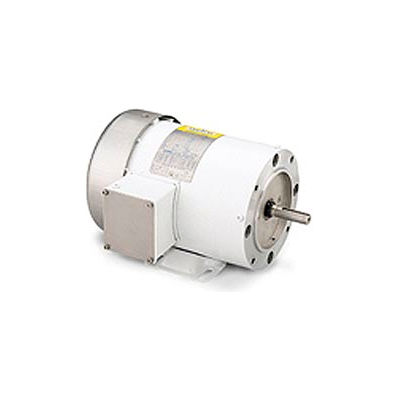

| Washguard White Epoxy Coated Motor, 3-Phase: 5HP, 1750 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 184 Frame, RIGID C, 208-220/460V, 3PH, 60HZ, Name Plate Amps 14-13/6.5, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 87.5, Efficiency Type: Epact, Ambient 40 C, Reverse Rotation, Shaft Length: 2-1/4", Shaft Diameter: 1-1/8". Enhanced performance in wet, humid areas - Durable RUST-OLEUM® white epoxy coating
- Stainless steel shaft, conduit box cover, nameplate, fan guard
- Special gaskets, slingers and seals
- Four endshield drains
- Moisture-resistant interior components
- Meets IP55 enclosure protection
- Suitable for use on VFDs
- 10:1 ratio for constant or variable torque at 1.0 SF
Click for Motor Outline and Dimensions Click for Motor External Wiring Diagram | Compatibility | | AO Smith/Magnetek: E2017 | E2019(Leeson motor has rigid base ) | | Baldor: CWDM3615T | | GE: S2386 | | Grainger/Dayton: 4RR20 | 4TF17 | | Marathon: N616 |
|
| Product Specifications |
| HORSEPOWER |
5 |
| ENCLOSURE |
TEFC |
| FRAME |
184 |
| BRAND |
Leeson |
| MOUNTING |
Rigid C |
| RPM |
1750 |
| PHASE |
3 |
| DESIGN |
Sq Cage Inductor Run |
| VOLTAGE |
208-220 / 460 |
| NAMEPLATE AMPS |
14-13/6.5 |
| HERTZ |
60 |
| DUTY |
Continuous |
| SERVICE FACTOR |
1.15 |
| THERMAL PROTECTION |
No |
| EFFICIENCY TYPE |
EPAct |
| EFFICIENCY |
87.5 |
| AMBIENT TEMP C |
40 |
| SHAFT DIAMETER |
1-1/8 |
| SHAFT LENGTH INCHES |
2-3/4 |
| ROTATION |
REV |
| SHAFT END BEARING |
6207 |
| WEIGHT |
82 |
| UL |
Y |
| CSA |
Y |
| LEESON MODEL NO. |
C184T17WK5EE |
| UPC |
69172008631 |
| CATALOG NO. |
132201 |
|
|
|
|
 |
|
|
