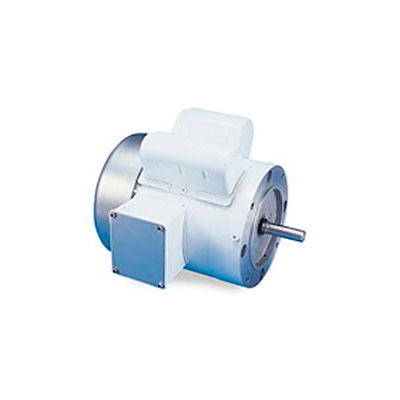

Leeson Motors Motor Washdown Motor-1HP, 115/208-230V, 3450RPM, TEFC, ROUND, 1.15 SF, 70 Eff.

Item #: WBB228225

Sold By: globalindustrial.com

Usually ships in 2 to 5 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

List Price: $517.00 Save up to 42%
qty Price
1-5 $312.95 ea.
6+ $297.95 ea.

Add to list
Product Information
Product Q&A
Washguard White Epoxy Motor, Single Phase: 1HP, 3450 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 56 Frame, ROUND, 115/208-230V, 1PH, 60HZ, Name Plate Amps 12/6.2-6, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 70, Efficiency Type: Standard, Ambient 40 C, Selective CCW Rotation, Shaft Length: 1-7/8", Shaft Diameter: 5/8".

Enhanced performance in wet, humid areas

  • Durable RUST-OLEUM® white epoxy coating
  • Stainless steel shaft, conduit box cover, nameplate, fan guard
  • Special gaskets, slingers and seals
  • Four endshield drains
  • Moisture-resistant interior components
  • Meets IP55 enclosure protection
  • 10:1 ratio for constant or variable torque at 1.0 SF


Click here to see our full selection of Motor Controls and Drives.

Click for Motor Outline and Dimensions

Click for Motor External Wiring Diagram

Compatibility
Grainger/Dayton: 5M287(Leeson motor is totally enclosed fan-cooled )
Marathon: N526

Product Specifications

  • HORSEPOWER1
  • ENCLOSURETEFC
  • FRAME56
  • BRANDLeeson
  • MOUNTINGRound
  • RPM3450
  • PHASE1
  • DESIGNCapacitor Start Inductor Run
  • MATERIALRolled Steel
  • VOLTAGE115 / 208-230
  • NAMEPLATE AMPS12/6.2-6
  • HERTZ60
  • DUTYContinuous
  • SERVICE FACTOR1.15
  • THERMAL PROTECTIONNo
  • EFFICIENCY TYPEStandard
  • EFFICIENCY70
  • AMBIENT TEMP C40
  • SHAFT DIAMETER5/8
  • SHAFT LENGTH INCHES1-7/8
  • ROTATIONSelective CCW
  • SHAFT END BEARING6205
  • WEIGHT32
  • ULY
  • CSAY
  • LEESON MODEL NO.C6C34WC5GG
  • UPC69172001386
  • CATALOG NO.114316.00
